Y39-1-2. 筛分机 Fine Grinding Mill Rotary Screen Type xin

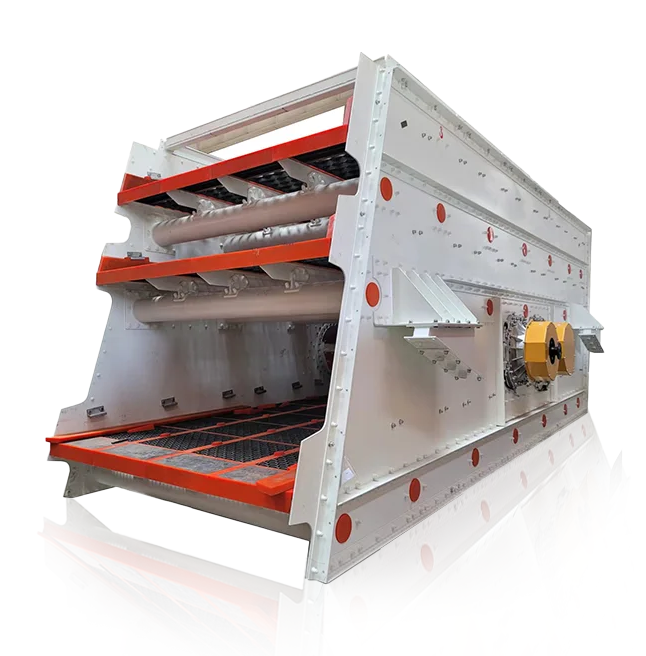

Y39-1.    TL-SFJ-ZD2X5型振动筛机   Fine Grinding Mill Rotary Screen Type TL-SFJ-ZD2X5

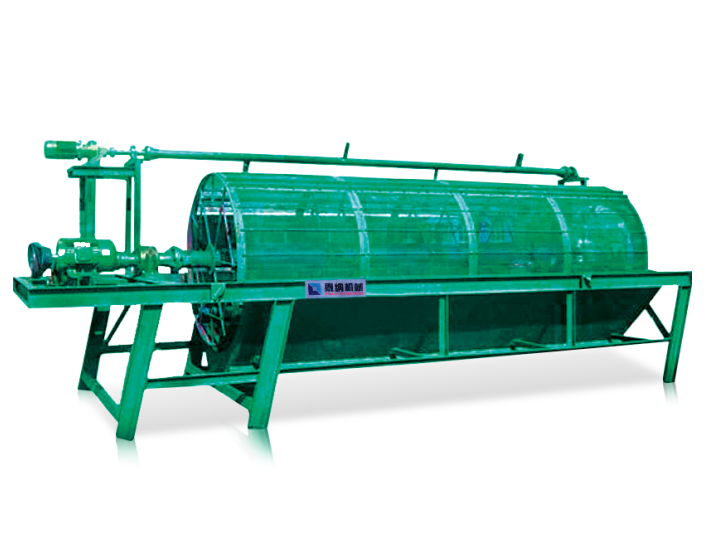

Y39-2.    TL-SFJ-GS4型滚筒筛机   Fine Grinding Mill Rotary Screen Type TL- XSJ-GS4

Machine Features

1.The SFJ-ZD2X5 multi-layer vibrating screen drives the material by the compound rotary vibration generated by the vibrator excitation. The upper large-aperture screen first completes the coarse screening, while the lower small-aperture screen performs the fine screening. The material moves in a jumping linear or circular motion on the screen surface, achieving multi-stage particle size classification. The SFJ-GS4 type drum screen, which is installed at an Angle on the frame, has its motor driving the cylinder to rotate around the axis through a reducer. The material constantly turns and rolls inside the cylinder. Fine particles are discharged through the screen mesh, while large particles are sent out from the tail discharge port. At the same time, it can automatically eject the material stuck in the screen holes to prevent the screen from clogging.

2. The SFJ-ZD2X5 model adopts a multi-layer screen structure with gradient configuration, equipped with a vibration motor, vibration damping springs, and a fully enclosed screen box. The screen plate inclination Angle can be adjusted. The screening area is 2.5 to 3.5 times that of a general ordinary screen machine. It is convenient to change screens and has low noise. The SFJ-GS4 type is composed of a motor, a reducer, a roller with a screen, and a frame. It adopts a segmented screen design and can be equipped with multiple screen surfaces of different hole diameters to achieve multi-level screening. It operates smoothly, has strong sealing performance, and is easy to maintain.

3. They are widely used in industries such as mining, coal, chemical engineering, building materials, and food. They can complete operations such as quartz sand classification, coarse coal slime descaling, and closed-circuit classification in mineral processing plants. They can also be used for screening construction waste and aged waste, as well as for gold enrichment and classification of chemical block materials. The SFJ-ZD2X5 is suitable for screening various dry and wet materials. The SFJ-GS4 is particularly suitable for damp and sticky materials.

设备描述及机型特点

1.SFJ-ZD2X5型多层式振动筛依靠振子激振产生的复旋型振动驱动物料，上层大孔径筛网先完成粗筛，下层小孔径筛网进行细筛，物料在筛面上做跳跃式直线或圆形运动，实现多级粒度分级。倾斜安装在机架上的SFJ-GS4型滚筒筛，其电机经减速机驱动筒体绕轴线转动，物料在筒内不断翻转滚动，细颗粒透过筛网排出，大颗粒从尾部排料口送出，同时可自动弹出卡入筛孔的物料不致堵网。

2. SFJ-ZD2X5型采用梯度配置的多层筛网结构，搭配振动电机、减振弹簧、全封闭筛箱，筛板倾角可调节，筛分面积是一般普通筛机的2.5-3.5倍，换网便捷、噪音低。SFJ-GS4型由电机、减速机、带筛网的滚筒、机架组成，采用分段式筛网设计，可配置多段不同孔径筛面实现多级筛分，运行平稳、密封性强、维护难度低。

3.它们广泛用于矿山、煤炭、化工、建材、食品等行业，可完成石英砂分级、粗煤泥脱泥、选矿厂磨矿闭路分级等作业，也可用于建筑垃圾、陈腐垃圾筛分，以及砂金富集、化工块状物料分级等场景，SFJ-ZD2X5适配干、湿多种物料筛分场景，而SFJ-GS4尤其适配潮湿易粘的物料。

• Final specifications can be adjusted according to process requirements.
• Complete drawings and technical sheets are available on request.
