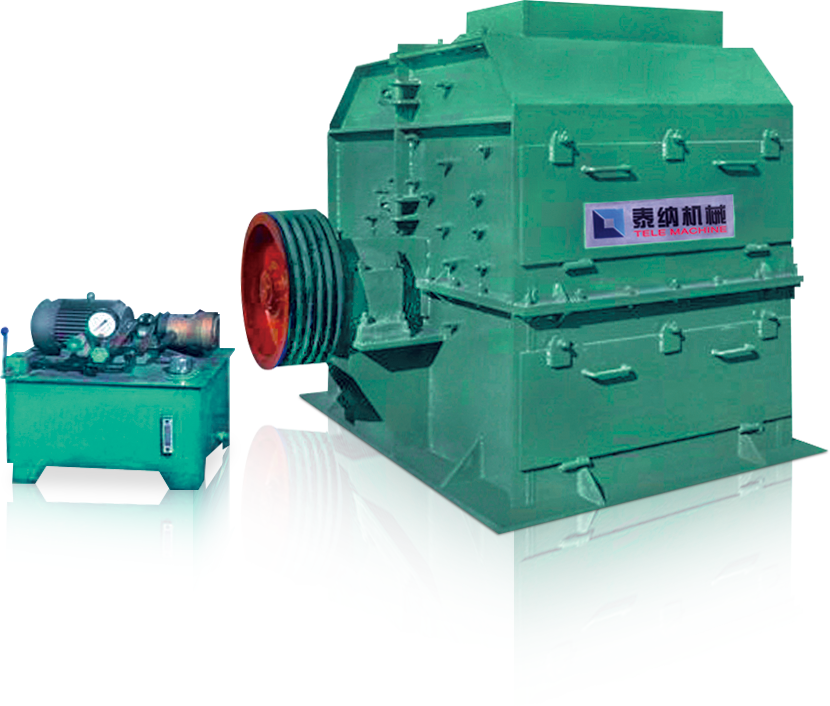

Y38-1. TL-XSJ-CX900型超细可调式细碎机 Adjustable Fine Grinding Mill Type TL-XSJ-CX900
| 参数项（中文 / 英文） | 参数值 | 单位 |
|---|---|---|
| 型号 Type | XSJ-CX900 | - |
| 外形尺寸 (长 × 宽 × 高) Dimension L×W×H | 1800×2000×1900 | 毫米 (mm) |
| 生产能力 Production Capacity | 30~35 | 吨 / 小时 (tons/hr) |
| 进料 / 出料粒度 Inlet/Outlet Particle Size | ≤100 / ≤3 | 毫米 (mm) |
| 电机功率 Motor Power | 90 | 千瓦 (kw) |
| 重量 Weight | ≈5500 | 公斤 (kg) |
Machine Features
1.Specially made for the material treatment process of rough milling, fine milling and screening to get follow-up required working materials of evener crudeness or fineness and better ductility.
2. The TL-XSJ-CX series employs a combination of rotating hammers and impact plates, as well as grate-type filtration, and is typically paired with the TL-XSJ-GS4 roller-type screening machine to meet the requirements for crushing raw materials.
设备描述及机型特点
1、专为陶瓷砖瓦生产线上粘土等原料的粗碎或细碎及筛分加工工序而特别研制，以获得后续工艺要求的粗细均匀及延展性较好的工作用料。
2、TL-XSJ-CX系列采用旋转锤头与反击板夹击及篦板过滤式并通常配套TL-XSJ-GS4滚筒式筛分机工作，达到破碎原料的要求。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
