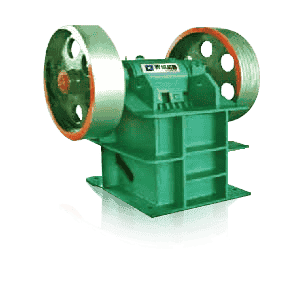

Y37-1, 2. 3. 4 TTL-PSJ-C600 Hammer Crusher Type TL-PSJ-C600 TL-PSJ-E250,E400 Jaw Crusher Type TL-PSJ-E250, E400
Y37-1, 2. 3. 4 TTL-PSJ-C600 Hammer Crusher Type TL-PSJ-C600 TL-PSJ-E250,E400 Jaw Crusher Type TL-PSJ-E250, E400
Y37-1, 2. 3. 4 Hammer Crusher Type TL-PSJ-C600 TL-PSJ-E250,E400 Jaw Crusher Type TL-PSJ-E250, E400
Y37-1, 2. 3. 4 Hammer Crusher Type TL-PSJ-C600 TL-PSJ-E250,E400 Jaw Crusher Type TL-PSJ-E250, E400
| Type | Dimension L×W×H (mm) | Production Capacity (tons/hr) | Inlet/Outlet Particle Size (mm) | Motor Power (kw) | Weight (kg) |
|---|---|---|---|---|---|
| PSJ-E250 | 1430×1310×1340 | 4~14 | ≤210 / ≤20~80 | 15 | ≈2800 |
| PSJ-E400 | 1730×1730×1630 | 16~60 | ≤340 / ≤40~100 | 30 | ≈7000 |
| PSJ-C600 | 1200×1000×1030 | 5~25 | ≤220 / ≤5~15 | 22 | ≈2300 |
| PSJ-F800 | 2052×1509×1834 | 20~25 | ≤200 / ≤3~10 | 75 | ≈5000 |
Machine Features
1.Specially made for the rough crushing process of the raw mineral,shale and clay materials to get follow--up required workingmaterials.
2. Each type has different way to crush, PSJ-E series adopts eccen-tric wheel control jaw opening and meshing type, PSJ-C seriesadopts rotary hammer and screen filter type; PSJ-F series adoptsthe gap between the impact plate and the hammer head type.Chose to use the characteristics of each type to achieve different
requirements.
