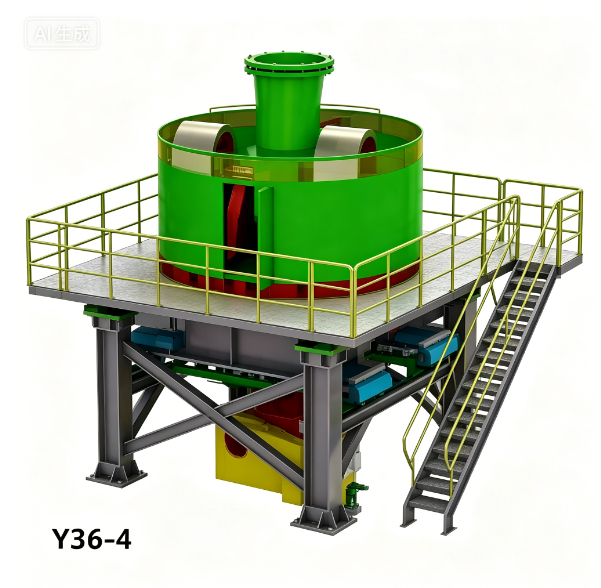

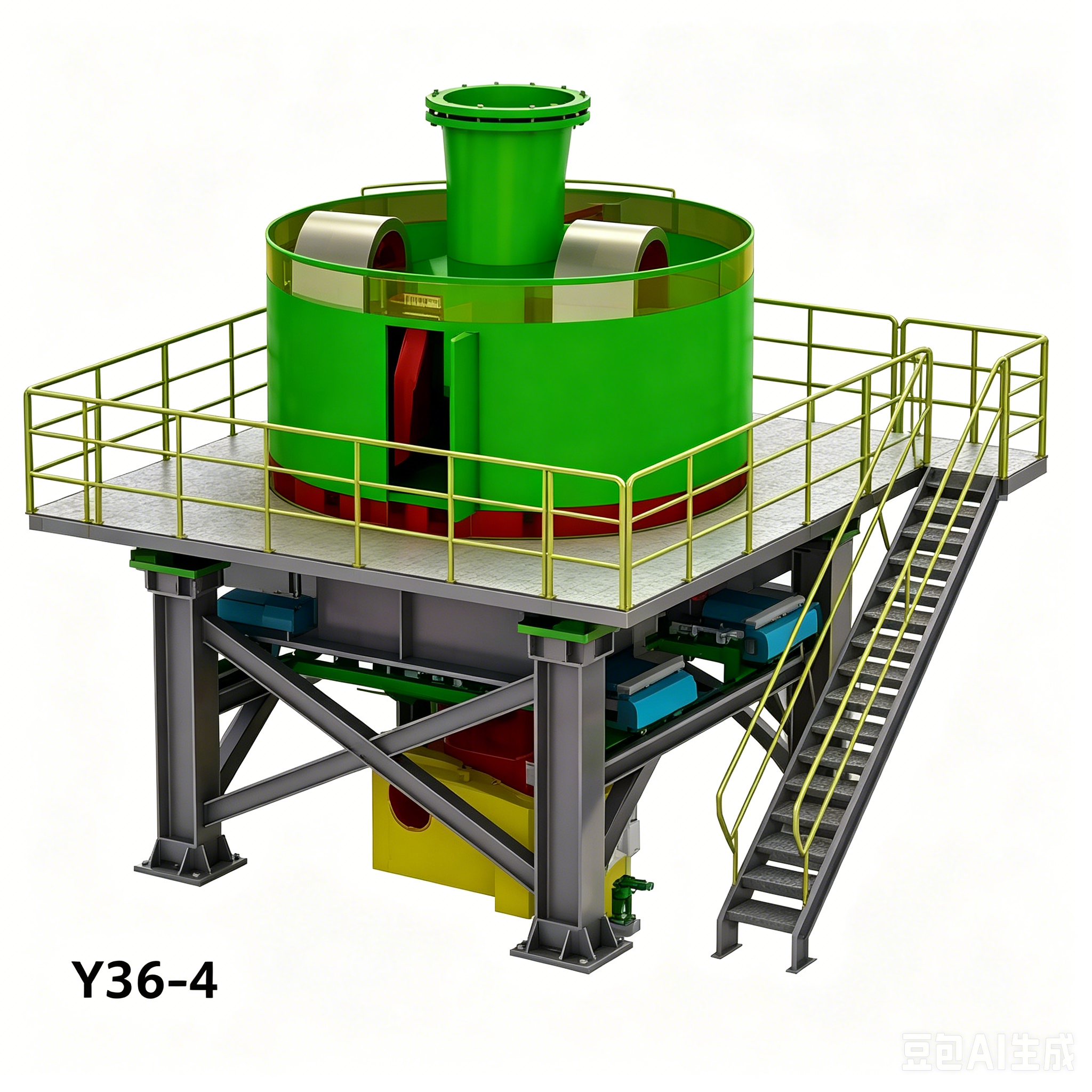

Y36-4 TL-XSJ-LN180型轮碾细碎机 Wet Pan Milll Type TL-XSJ-LN180
Y36-4 TL-XSJ-LN180型轮碾细碎机 Wet Pan Milll Type TL-XSJ-LN180
Y36-4 TL-XSJ-LN180型轮碾细碎机 Wet Pan Milll Type TL-XSJ-LN180
| 型号 Type | XSJ-LN180 |
|---|---|
| 外形尺寸 (长 × 宽 × 高) Dimension L×W×H | 5260×4540×6468 mm |
| 单位 | 毫米 (mm) |
| 生产能力 Production Capacity | 60 tons/hr |
| 单位 | 吨 / 小时 (tons/hr) |
| 进料 / 出料粒度 Inlet/Outlet Particle Size | ≤100 / ≤3 mm |
| 单位 | 毫米 (mm) |
| 磨盘直径 Diameter of Grinding Plate | Φ1850 mm |
| 单位 | 毫米 (mm) |
| 电机功率 Motor Power | 117.65 kw |
| 单位 | 千瓦 (kw) |
| 重量 Weight | ≈ 57000 kg |
| 单位 | 公斤 (kg) |
Machine Features
1.This machine takes the grinding wheel and the grinding plate as its core components. Through the transmission device, the grinding wheel is driven to roll on the grinding plate. Relying on the gravity of the grinding wheel, the materials are repeatedly squeezed and ground. At the same time, in combination with the scraper, the materials are continuously pushed under the grinding wheel, achieving fine crushing and uniform mixing of the materials and changing the structure of the materials to enhance the strength of subsequent products. It integrates the functions of crushing and stirring into one Equipped with multiple sets of scrapers to eliminate mixing dead corners.
2. The overall structure is simple, and the replacement of vulnerable parts is convenient. The core components (grinding wheels and grinding discs) are made of high-hardness wear-resistant materials, and wear-resistant layers are added in some areas, ensuring a long service life. The frame structure is stable and capable of withstanding heavy loads. The transmission system features high transmission efficiency, low noise, stable and reliable operation, and convenient maintenance. It adopts a hydraulic unloading design, making the operation difficult.
3. It is used for grinding and mixing of materials such as cement, lime, non-fired bricks; All kinds of metal and non-metal ores can be finely crushed, and industrial wastes such as slag and fly ash can also be processed. It also includes the medium and fine crushing and mixing of refractory materials with ceramic clay, silica, refractory mud, and ceramic bodies, and covers scenarios such as chemical engineering and the preparation of lithium battery cathode materials, achieving uniform mixing and modification of materials.
设备描述及机型特点
1.本机以碾轮和碾盘为核心部件，通过传动装置驱动碾轮在碾盘上滚动，
依靠碾轮的重力对物料进行反复挤压、研磨，同时配合刮板将物料不断推送至碾轮下方，
实现物料的细碎与均匀混合及改变物料结构提升后续制品强度，
它将碾压与搅拌功能合二为一，配备多组刮板消除混合死角。
2.整体结构简单，易损件更换方便，核心部件（碾轮、碾盘）采用高硬度耐磨材质制作，
并在部分区域增设耐磨层，使用寿命长。机架结构稳固，可承受大负荷，
传动系统传动效率高、噪音低，运行稳定可靠，维护便捷，
采用液压卸料设计，操作难度低。
3.用于水泥、石灰、免烧砖等物料的粉磨与混合；各类金属矿、非金属矿进行细碎，
也可处理矿渣、粉煤灰等工业废弃物；以及耐火材料与陶瓷黏土、硅石、耐火泥、
陶瓷坯料的中细碎及混练等，并覆盖化工、锂电池正极材料制备等场景，
实现物料的均匀混合与改性。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
