Y36-1-2-3 GRINDING MILL SERIES
Y36-1-2-3 GRINDING MILL SERIES

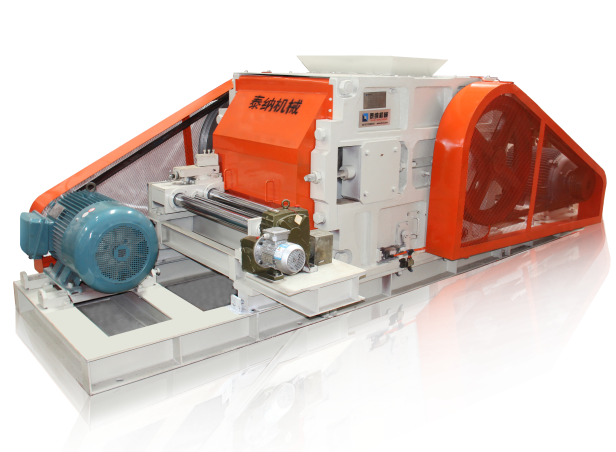

Y36-1-2 TL-XSJ-DG800, DG1000 型高速对辊式细碎机（及可选配的DGXF辊子修复机）
Y36-1-2 High-Speed Double-Roller Fine Grinding Mill Type TL-XSJ-DG800, DG1000, DGXF

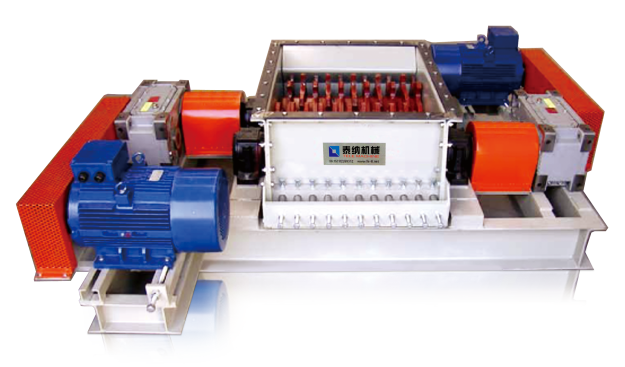

Y36-3 TL-XSJ-CG400型高速齿辊式细碎机
Y36-3 High-Speed Fine Grinding Mill Type TL-XSJ-CG400
| 技术参数 / Parameter | XSJ-DG800 型号 / Type | XSJ-DG1000 型号 / Type | XSJ-CG400 型号 / Type | ||
|---|---|---|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 3150×1580×1550 | 4850×1600×1250 | 2750×2500×790 | ||
| 生产能力 / Production Capacity 吨 / 小时 (tons /hr) | 15~25 | 25~35 | 20~25 | ||
| 进料 / 出料粒度 / Inlet/Outlet Particle Size 毫米 (mm) | ≤100 / ≤1.5~5 | ≤130 / ≤1.5~5 | ≤300 / ≤40 | ||
| 电机功率 / Motor Power 千瓦 (kw) | 67 | 82 | 35 | ||
| 重量 / Weight 公斤 (kg) | ≈6000 | ≈7000 | ≈3500 |
Machine Features
1.Specially made for the material treatment process of rough milling,
fine milling and screening to get follow-up required working
materials of evener crudeness or fineness and better ductility.
2.Each type has its way of working, type DG by double rollers milling,

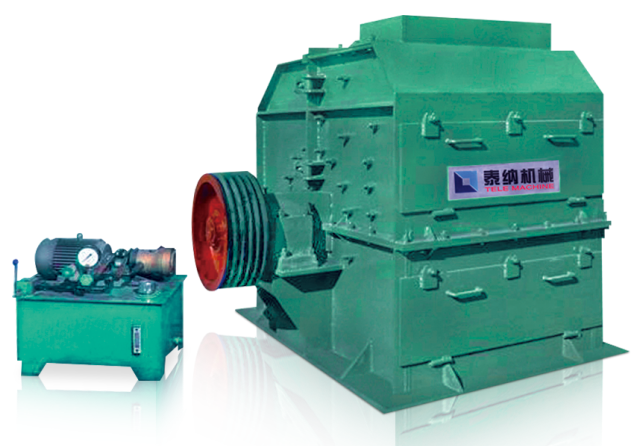

type CG by double gear- rollers milling, type CX by rotary hammers
& strike back boards milling and screen board sieving repeated,

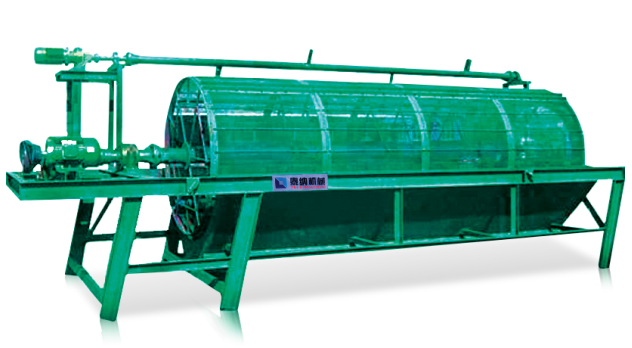

and type GS4 by rotary screen sieving, all to meet different require-
ments.
设备描述及机型特点
1.专为陶瓷砖瓦生产线上粘土等原料的粗碎或细碎及筛
分加工工序而特别研制，以获得后续工艺要求的粗细
均匀及延展性较好的工作用料。
2.各系列的细碎方式有所不同：TL-XSJ-DG系列采用双
辊子对辊式、TL-XSJ-CG系列采用双齿辊啮合式、
TL-XSJ-CX系列采用旋转锤头与反击板夹击及篦板过
滤式、TL-XSJ-GS4系列采用筛网式滚筒旋转式，分
别达到不同功能要求
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
