Y35-1-2 KNEADING FEEDER SERIES
Y35-1-2 KNEADING FEEDER SERIES
Y35-1-2 TL-NHJ-GL300, GL1200 型三轴捏合给料机
Y35-1-2 High Speed Mixing Granulator (with 2 hydraulic sliding screen plates head) Type
Triple Shafts Kneading Feeder Type TL-NHJ-GL300, GL1200
| 技术参数 / Parameter | NHJ-GL1200 型号 / Type | NHJ-GL3000 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 2795×1715×1176 | 2795×1715×1176 |
| 生产能力 / Production Capacity 吨 / 小时 (tons /hr) | 10~20 | 6~18 |
| 捏合辊直径 / 两辊中心距 / Lower Augers Diameter 毫米 (mm) | Φ585 / 600 | Φ / 240 |
| 捏合筒尺寸 / Kneading Barrel Size 毫米 (mm) | 1414×1200×1090 | 1315×520×740 |
| 电机功率 / Motor Power 千瓦 (kw) | 37/5.5 | 15/5.5 |
| 重量 / Weight 公斤 (kg) | ≈7500 | ≈2300 |
Machine Features
1.Specially made for the material preparation process with three functions of kneading, storage & feeding. Its raw material contact part are made of

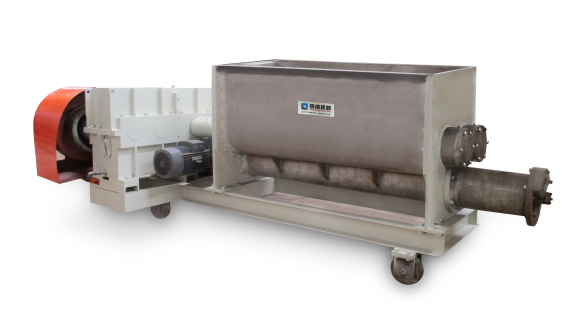

stainless steel, and the lighter model NHJ-GL300 has the bottom movable wheel structure of easy in & out the working position for easy cleaning.

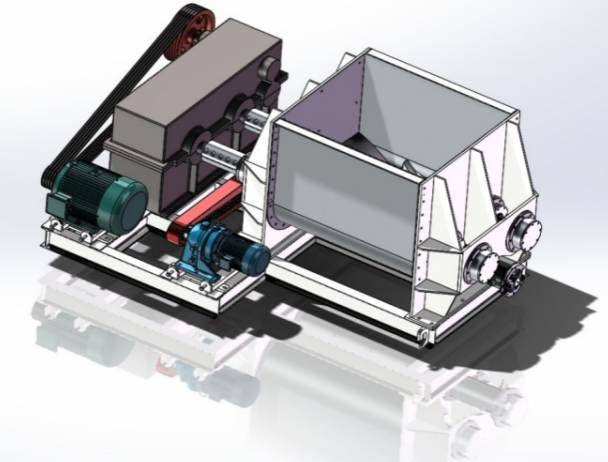

2.The twisted kneading rollers on the two relative rotating motions upper shafts knead the material, and the lower spiral type shaft further extrusion and
transports the material. The well kneaded material via upper shafts is output to the next process through the lower shaft. It is mainly suitable for the
preparation process of wet concrete or cement lump mixture.
设备描述及机型特点
1.专为某些特定原料的制备过程而研制，如
各种团块混凝土或水泥等混合材料的制
备。具有揉捏、储存和喂料三种功能。其
原料接触的机体部分材料均采用不锈钢，
其中轻型的NHJ-GL300型底部采用的是易
于移进移出工位的动轮结构，方便每班后
的清洗工作。
2.具有上腔内两个相对旋转运动的扭曲型捏
辊轴对物料进行揉捏，下腔内一个螺旋叶
轴的螺旋式对原料进行进一步挤压和输送
的结构，上轴捏合好的原料经下轴输出至
下一工序。主要适用于湿混凝土或水泥团
块状混合物等物料的制备及给料工艺。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
