Y34-9-10 MIXING GRANULATOR SERIES
Y34-9-10 MIXING GRANULATOR SERIES
Y34-9-10 TL-ZLJ-JB400II-2HSSP, JB600II-2HSSP型(液压驱动双滑动式筛板)高效搅拌造粒机

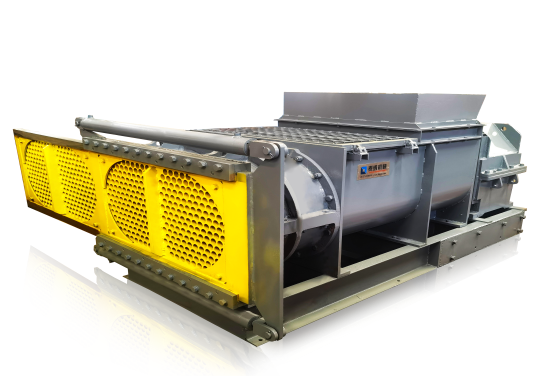

Y34-9-10 High Speed Mixing Granulator (with 2 hydraulic sliding screen plates head) Type
TL-ZLJ-JB400II-2HSSP, JB600II-2HSSP
| 技术参数 / Parameter | JB400II-2HSSP 型号 / Type | JB600II-2HSSP 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 3332×3257×1385 | 3600×3426×1480 |
| 生产能力 / Production Capacity 吨 / 小时 (tons /hr) | 35~55 | 45~65 |
| 挤出螺旋叶直径 / Augers Diameter 毫米 (mm) | Φ400 | Φ600 |
| 有效搅拌长度 / Useful Mixing Length 毫米 (mm) | 2088 | 2128 |
| 电机功率 / Motor Power 千瓦 (kw) | 75 | 90 |
| 重量 / Weight 公斤 (kg) | 9800 | 11600 |
Machine Features
1.Leading technology specially made for the better treatment of mixing, kneading & granulating process, to get well-distributed and even working
materials, so as to improve the green tiles in dense structured and less internal stress. The production capacity can be adjusted by pneumatic clutch.

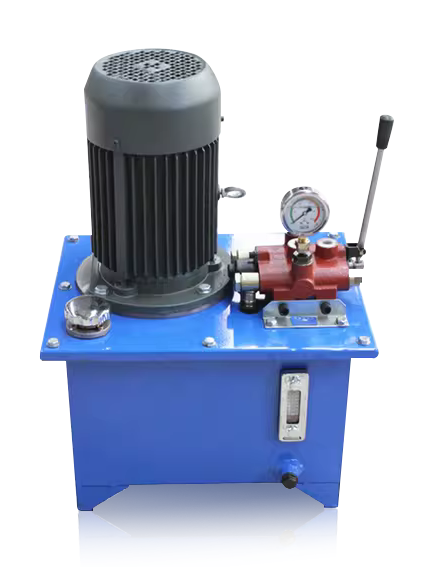

2.Its hydraulic sliding double working extrusion screen plates head can be easily shifted between working and standby, thus can save a lot of time
when single screen plate machine must stop normal work to clean the garbage, roots, rocks and other foreign objects in the materials stuck ion the
screen plate.
设备描述及机型特点
1.领先技术专为陶瓷砖瓦等生产线上原料的充分搅拌混合、挤压揉合、切割造粒工序而特别研制，使原料组织分布变得均匀和密实，能最终有效地改善原料
后续制成的砖瓦坯体的成型质量，如能提高其致密度及降低内应力变形等，配以气动离合器能调节产能。
2.特别设计的液压驱动双工位滑动式筛网板机构，具有在两个筛板工位之间简单方便地移动和清理操作处于非工作工位筛板上卡住的杂物的功能；极大的节
省了单筛板机型需要停机清理卡在筛板上原料中的垃圾、树根、岩块等异物时的操作时间。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
