Y34-1-2-3-4 MIXING GRANULATOR SERIES
Y34-1-2-3-4 MIXING GRANULATOR SERIES

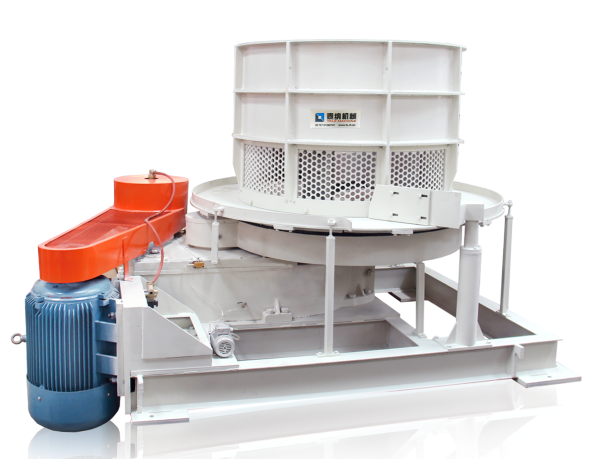

Y34-1-2 TL-ZLJ-YPA, YPB 型圆盘筛式搅拌造粒机
Y34-1-2 Circular Screen Mixing Granulator Type TL-ZLJ-YPA, YPB

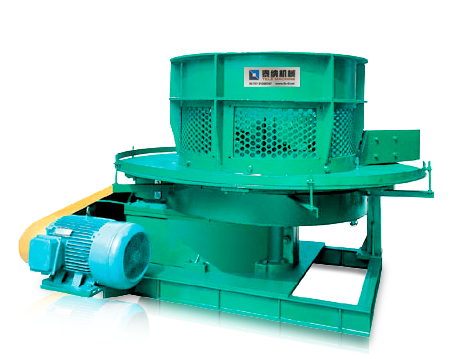

Y34-3-4 TL-ZLJ-YPC, YPD 型圆盘筛式搅拌造粒机
Y34-3-4 Circular Screen Mixing Granulator Type TL-ZLJ-YPC, YPD
| 技术参数 / Parameter | ZLJ-YPA 型号 / Type | ZLJ-YPB 型号 / Type | ZLJ-YPC 型号 / Type | ZLJ-YPD 型号 / Type |
|---|---|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 1920×1820×1540 | 2500×2076×1980 | 3600×2900×2000 | 4970×4050×2800 |
| 生产能力 / Production Capacity 吨 / 小时 (tons /hr) | 15~20 | 20~30 | 40~50 | 55~70 |
| 筛网筒内径 / Screen Barrel Inner Diameter 毫米 (mm) | Φ1000 | Φ1200 | Φ1500 | Φ1800 |
| 电机功率 / Motor Power 千瓦 (kw) | 22 | 30 | 45 | 75 |
| 重量 / Weight 公斤 (kg) | 4000 | 5000 | 9000 | 10000 |
Machine Features
1.Leading-edge technology specially made for the
fine treatment of material by adequate mixing,
fully kneading & homogenized granulating
process, to get well-distributed and evenly
internal structure of working materials, which is
essential to making higher quality of final
products. (Type YPC and YPD have different
structure, higher and flexible production capacity
compared with type YPA and YPB)
2.To be superior stability, durability and quality
guarantee by the unique high strength gearbox,
integral casting rotary harrow and alloy scraper,
compulsory reduction driving unit, relatively
rotating style of screen barrel and oil recyclable
device etc.
设备描述及机型特点
1.领先优势技术，专为陶瓷砖瓦生产线上原料
的充分混练、深度揉合、均化造粒工序而特
别研制，造就原料内部颗粒组织的纵横两向
分布更均匀、最终产品的质量更上乘。
(YPC、YPD型较YPA、YPB型外形结构不
同、产能更大并可用气动离合器及变频电机
弹性调节)
2.采用独特的高强减速箱结构、整体铸造旋转
耙及合金刮板、强制式减速传动方式、筛网
转筒相对运动方式、及供油循环方式等，具
有超强的稳定性、耐用性和质量保障。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
