Y32-1-2-3-4 MIXER SERIES
Y32-1-2-3-4 MIXER SERIES

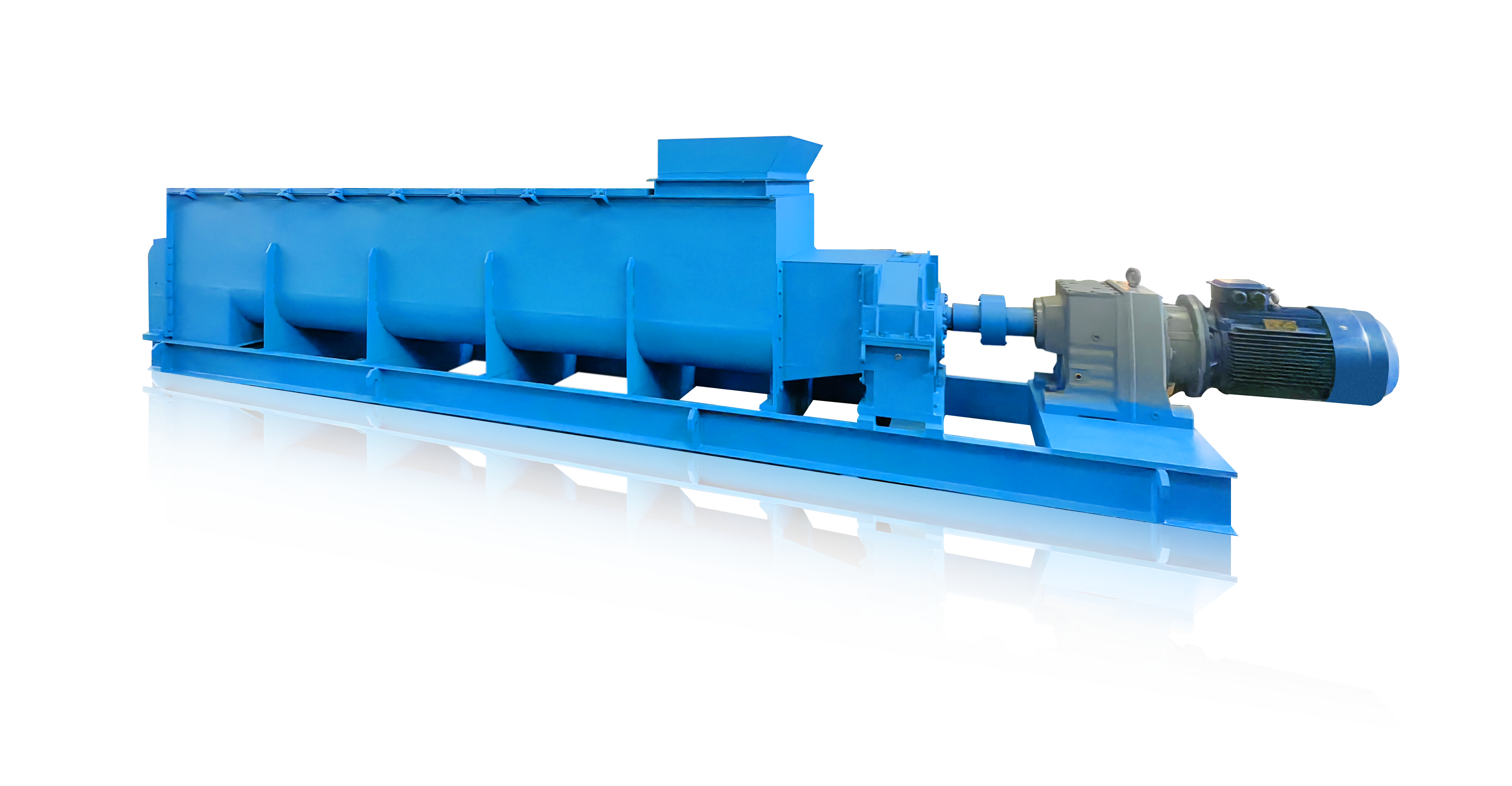

Y32-1-2 Double Shafts Mixer Type TL-JBJ-400II, 300II
Y32-3-4 Double Shafts Mixer Type TL-JBJ-500II.NA，400II.NAx2
| Parameter | JBJ-400II | JBJ-300II | 500II.NA | 400II.NAx2 |
|---|---|---|---|---|
| Dimension L×W×H (mm) | 6400×2380×1160 | 5100×1700×825 | 8040×1480×1780 | 7890×2690×1650 |
| Production Capacity (tons /hr) | 35~55 | 15~25 | 20~30 | 40~60 |
| Stirring Barrel Length (mm) | 3600 | 3000 | 5000 | 5000 |
| Motor Power (kw) | 75 | 37 | 55 | 90 |
| Weight (kg) | 5500 | 3500 | 10310 | 17975 |
Machine Features
1.Specially developed for the full mixing,
stirring and kneading process of raw
materials and with water on ceramic tile
production line.
2.TL-JBJ-400II, 500II.NA and other
models all use double rotating stirring
shafts, and a certain angle on the
shafts and specifications of the blades
layout is for better material mixing
preparation result along with high
efficient, stable and reliable operation.
3.The upgraded type 500II.NA & 400II.-
NAx2, in addition to increasing the
effective mixing length and other
structures, the specially configured
intelligent water adding control system
can adapt to a wider range of working
materials, from dry powder to wide
kinds of moisture materials can be
stirred and mixed, and can automati-
cally control the material moisture to
the set values.
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
