Y32-1-2-3-4 MIXER SERIES
Y32-1-2-3-4 MIXER SERIES

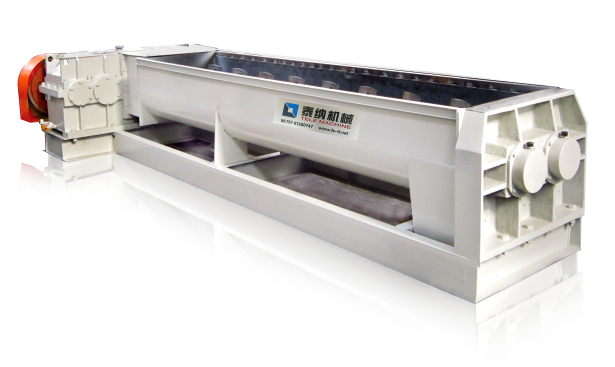

Y32-1-2 TL-JBJ-400II, 300II型双轴搅拌机
Y32-1-2 Double Shafts Mixer Type TL-JBJ-400II, 300II

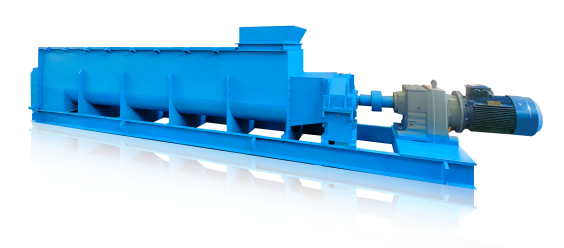

Y32-3-4 TL-JBJ- 500II.NA，400II.NAx2型双轴搅拌机及机组
Y32-3-4 Double Shafts Mixer Type TL-JBJ-500II.NA，400II.NAx2
| 技术参数 / Parameter | JBJ-400II 型号 / Type | JBJ-300II 型号 / Type | 500II.NA 型号 / Type | 400II.NAx2 型号 / Type |
|---|---|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 6400×2380×1160 | 5100×1700×825 | 8040×1480×1780 | 7890×2690×1650 |
| 生产能力 / Production Capacity 吨 / 小时 (tons /hr) | 35~55 | 15~25 | 20~30 | 40~60 |
| 搅拌槽长度 / Stirring Barrel Length 毫米 (mm) | 3600 | 3000 | 5000 | 5000 |
| 电机功率 / Motor Power 千瓦 (kw) | 75 | 37 | 55 | 90 |
| 重量 / Weight 公斤 (kg) | 5500 | 3500 | 10310 | 17975 |
Machine Features
1.Specially developed for the full mixing,
stirring and kneading process of raw
materials and with water on ceramic tile
production line.
2.TL-JBJ-400II, 500II.NA and other
models all use double rotating stirring
shafts, and a certain angle on the
shafts and specifications of the blades
layout is for better material mixing
preparation result along with high
efficient, stable and reliable operation.
3.The upgraded type 500II.NA & 400II.-
NAx2, in addition to increasing the
effective mixing length and other
structures, the specially configured
intelligent water adding control system
can adapt to a wider range of working
materials, from dry powder to wide
kinds of moisture materials can be
stirred and mixed, and can automati-
cally control the material moisture to
the set values.
设备描述及机型特点
1.专为陶瓷砖瓦生产线上原料与水的充分搅拌、混合、
揉练工序而特别研制。
2.JBJ-400II, JBJ-500II.NA等机型均采用双对滚旋转的搅
拌轴，及轴上一定角度及规格的叶片布局方式进行原
料的搅拌制备，具有工作效率高，运行稳定可靠的特
点。
3.升级版的500II.NA，400II.NAx2机型除加大了有效搅
拌长度等结构外，特别配置的智能加水控制系统，能
够适应更广的工作原料状态范围，从干粉状到各种水
份状的原料都能搅拌，并能够自动控制所搅拌的原料
水分至设定值。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
