Y31-1-2-3-4 FEEDER SERIES
Y31-1-2-3-4 FEEDER SERIES

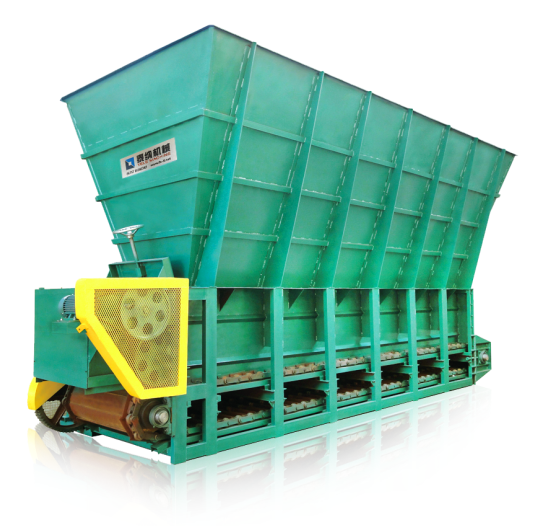

Y31-1-2 TL-WLJ-LB4~LB20 型链板箱式喂料机
Y31-1-2 Chain Plate Box Feeder Type TL-WLJ-LB4~LB20

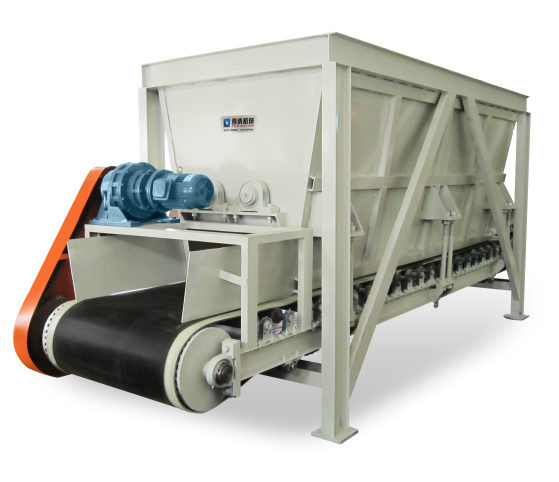

Y31-3-4 TL-WLJ-PD4~PD15型皮带箱式喂料机
Y31-3-4 Belt Box Feeder Type TL-WLJ-PD4~PD15
| 技术参数 / Parameter | LB4~LB20 型号 / Type | PD4~PD15 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | (4644~6900)×(1960~2500)×(1243~3400) | (4644~5293)×(1960~2069)×(1243~2150) |
| 工作容量 / Capacity 立方 (m³) | 4~20 | 4~15 |
| 输送速度 / Feeding Speed 米 / 分 (m/min) | 0.5~1.6 | 0.5~1.6 |
| 电机功率 / Motor Power 千瓦 (kw) | 4.5~5.5 | 4.5 |
| 重量 / Weight 公斤 (kg) | 3000~7500 | 2800~6500 |
Machine Features
1.Specially made for the material preparation process with
three functions of mixing, storage & feeding.
2.TL-WLJ-LB series mainly for all kinds of lump materials
like wet clay lump by adopt chain plate conveying, while
TL-WLJ-PD series suitable for the kind of dry ceramic
powder by adopt belt conveying. (It is available to design
small or big hoppers according to different capacities
requirements)
设备描述及机型特点
1.专为陶瓷砖瓦生产线上原料混合、储存、配
给工序而特别研制。
2.TL-WLJ-LB系列适用于各种陶土湿块料，采
用链板式输送结构；而TL-WLJ-PD系列适用
于各种陶瓷干粉料，采用皮带式输送结构。
（两系列还可根据客户需要设计料箱容积大
小以达到不同的产能）
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
