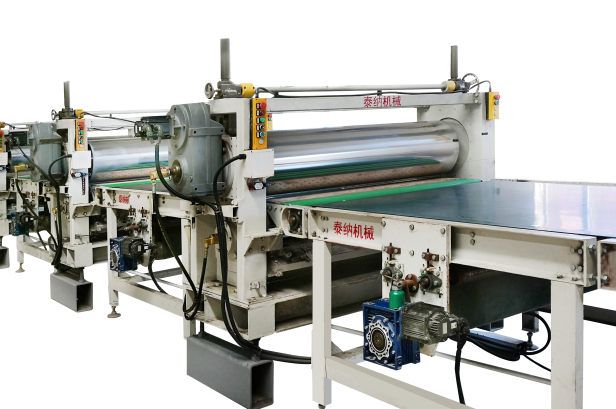

C.26-1 TL-YYJ-1.85/1.6-Nx2RØ400型建材薄板油温式多级对辊压延主机
C.26-1 Multi-Stages Building Sheet Roller Calendaring Main Machine Type TL-YYJ-1.85/1.6-Nx2RØ400

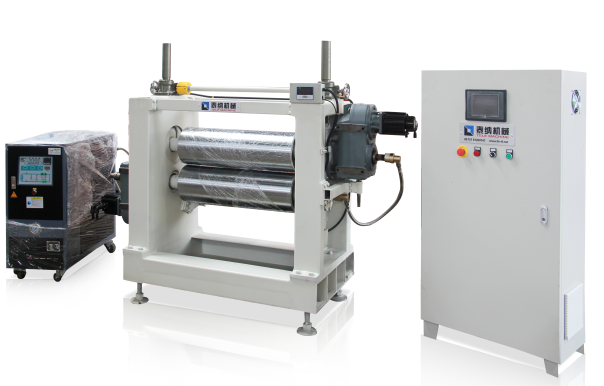

C.26-2 TL-YYJ-1/0.8-1x2RØ300型试验薄板油温式一级对辊压延主机
C.26-2 Lab Use One-Stage Building Sheet Roller Calendaring Main Machine Type TL-YYJ-1/0.8-1x2RØ300
| 技术参数 / Parameter | 1.85/1.6-Nx2RØ400 型号 / Type | 1/0.8-1x2RØ300 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 8300×2930×2100 | 6200×1100×1700 |
| 辊子线速度 / Rolling Linear Speed 米 / 分 (m/min) | 0~18 | 0~8 |
| 辊子长 / 径尺寸 / Roller Size L/Ø 毫米 (mm) | 1850/Ø400 | 1000/Ø300 |
| 有效压延宽度 / Valid Working Width 毫米 (mm) | ≤1600 | ≤800 |
| 双辊间隙调节范围 / Adjustable Roller's Gap Range 毫米 (mm) | 3~33 | 5.5~55 |
| 电机功率 / Motor Power 千瓦 (kw) | 3 | 1.5 |
| 重量 / Weight 公斤 (kg) | ≈3500 | ≈1100 |
Machine Features
1.Adopting servo motor and PLC coding program control, to track andfeedback the length and speed parameters of continuous blank plateinput from the extruder of the upper process, and roll the thickness andwidth of the initial blank plate input synchronously according to the setrequirements; According to the need to select one to N roller unitsstages, and allocate the roller calendaring amplitude that needs to beachieved at all stages, generally the thickness of each stage can bethinned is 2-3mm.
2. The thickness of each stage needs to be done rolling (that is, the gapbetween the rollers) can be quickly adjusted through both ends synchro-nous adjustment mechanism and the LCD digital display screen. Theinner recycled heating oil pipeline of the rollers is connected to the oiltemperature machine of each heating unit (need to be configuredseparately). Adjusting the temperature of the roller surface in the rangeof 85-95°C can ensure that the blank does not stick to the roll, achievingstable and smooth production and obtain the best calendaring effect.
设备描述及机型特点
1.采用伺服电机和PLC编码程序控制，对来自上级工序挤出机输入的连续坯板的长度和速度参数进行跟踪和反馈，将同步输入的初始坯板的厚度及宽度尺寸按设定要求辊压压延到位;根据需要选择一到N级压延机组，并分配各级需要达到的辊压压延幅度，一般每级可压薄的厚度为2-3mm;
2.每组辊子需要压延的厚度值(即辊子之间的间隙)可通过两端同步调节机构及LCD液晶数字显示屏来快速调节设定，辊子内置式可循环利用的加热油管道结构，分别连接到各自油加热单元的油温机上(需另外配置)，调节压辊表面的温度在85-95°C范围可确保工作时坯板不粘辊，实现稳定畅顺的生产及获得最佳的压延效果.
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
