C25-1-2-3 CORNER TILE FURTHER PROCESSING MACHINES SERIES
C25-1-2-3 CORNER TILE FURTHER PROCESSING MACHINES SERIES
C.25-1-2-3 TL-JZJ系列之角砖切边机QBJ-A，磨边机MBJ-A，施釉线SYX-A
C.25-1-2-3 JZ.J Series of Corner Tile-Rim Cutting, Grinding & Glazing Machine TypeTL-JZJ-QBJ-A, MBJ-A, SYX-A
| 技术参数 / Parameter | QBJ-A 型号 / Type | MBJ-A 型号 / Type | SYX-A 型号 / Type |
|---|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 4450×1065×1545 | 2450×1450×1200 | 12000×1350×1500 |
| 推进速度 / Working Speed 毫米 / 秒 (mm/s) | 1~30 | 1 | 1~30 |
| 加工长度范围 / Working Length Range 毫米 (mm) | 1~200 | 1~2 | 1~200 |
| 加工宽度范围 / Working Width Range 毫米 (mm) | 1~200 | 1~2 | 1~200 |
| 电机功率 / Motor Power 千瓦 (kw) | 2.29 | 7.5 | 12.5 |
| 重量 / Weight 公斤 (kg) | 1,500 | 1,700 | 3,000 |
- Machine Features

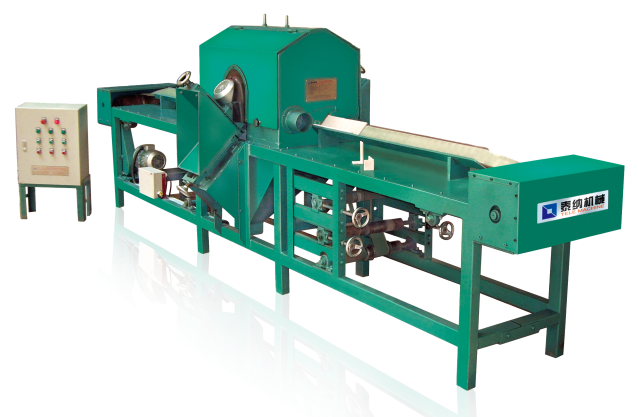

1.TL-JZJ-QBJ-A specially made for the cutting process of the two rough rims of greencorner tiles formed in dry press process by way of combination cutter processing ofwide range and easy adjustment, high precision.
2 TL-JZJ-MBJ-A specially made for the fine mending process of the two deviation rimsafter fired of corner tiles by way of auto-combination grinding wheel to get finishedtiles of exactly in size and smoothly in surface.

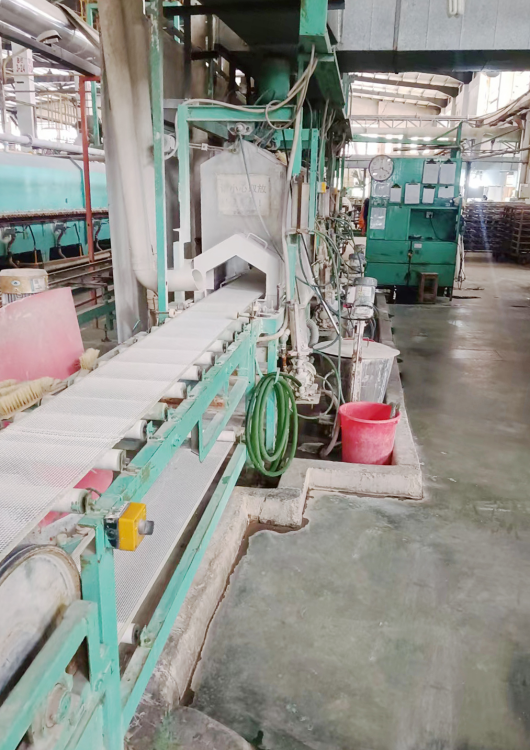

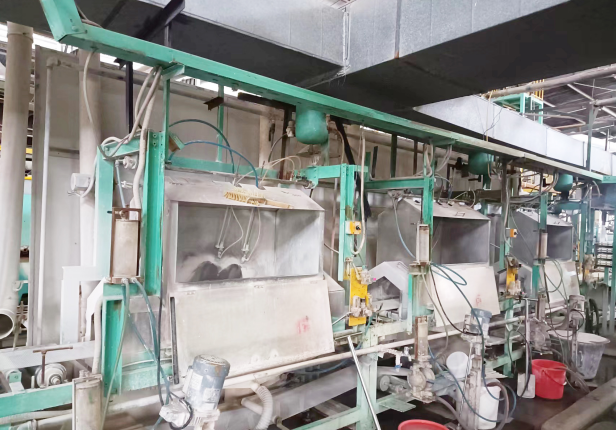

3 TL-JZJ-SYX-A specially made for various corner tiles glazing process by way of multiglaze spray guns working combined or separately controlled and guaranteed theglazed surface in even, perfect and stableAbove 3kinds of machine matched with each other can realize the high quality &automated corner tiles further processing production whole processes.
设备描述及机型特点
1.TL-JZJ-QBJ-A专为切割去除压制成型的陶瓷角砖生坯的两条工艺边而特别研制，采用组合刀盘切割方式，自动化加工范围广且易于调节，加工精度高.
2.TL-JZJ-MBJ-A专为修整烧成后的陶瓷角砖两边的变形偏差工序而特别研制，采用组合砂轮磨削方式，自动化操作方便可靠，加工尺寸准确，加工表面光整;
3.TL-JZJ-SYX-A专为不同规格的陶瓷角砖表面进行施釉作业而特别研制，通过调节多头喷枪的数量及摆动方向进行组合式或独立式施釉，保证施釉面均匀、完美、稳定;
上述三种角砖机的配套使用，可实现高质量陶瓷角砖产品深加工工艺生产的全过程。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
