C24-1-2-3 SPLITTING/BREAK MACHINE SERIES
C24-1-2-3 SPLITTING/BREAK MACHINE SERIES

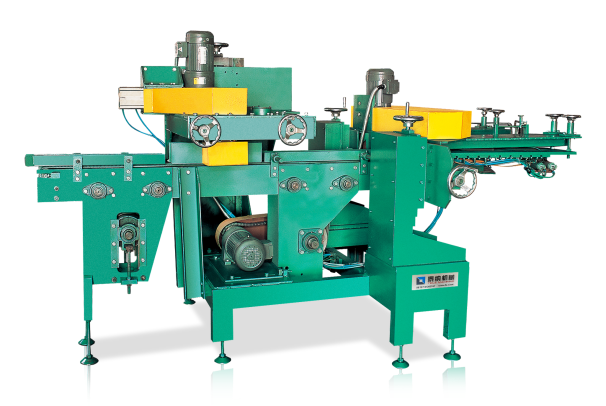

C.24-1 TL-PZJ-AT型全自动劈砖机
C.24-1 Auto Splitting Machine Type TL-PZJ-AT

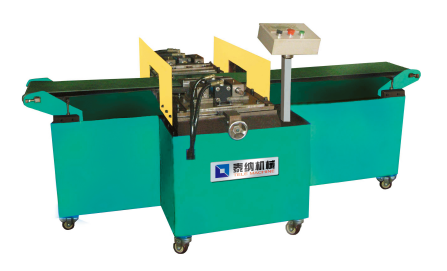

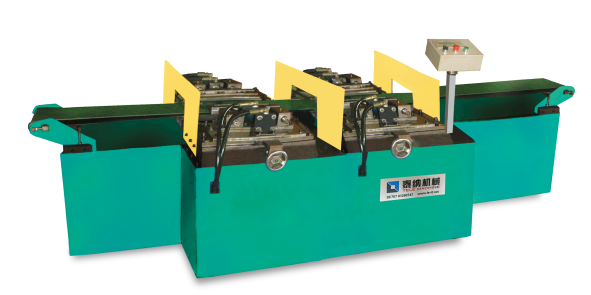

C.24-2-3 TL-PZJ-PY,PY-2W型自动液压劈砖机
C.24-2-3 Hydraulic Splitting Machine Type TL-PZJ-PY, PY-2W
| 技术参数 / Parameter | PZJ-AT 型号 / Type | PZJ-PY 型号 / Type | PZJ-PY-2W 型号 / Type |
|---|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 2838×1724×1540 | 2300×1600×1200 | 3090×1600×1200 |
| 劈砖频率 / Cutting Frequency 次 / 分 (1/min) | 1~70 | 1~25 | 1~25 |
| 劈砖长 / 宽范围 / Working Length/Width Range 毫米 (mm) | 50~300 / 50~200 | 50~300 / 20~165 | 50~600 / 20~165 |
| 劈砖厚度范围 / Working Thickness Range 毫米 (mm) | 10~30 | 10~50 | 10~50 |
| 电机功率 / Motor Power 千瓦 (kw) | 1.9 | 3.55 | 7.1 |
| 重量 / Weight 公斤 (kg) | 1,500 | 1,600 | 1,980 |
Machine Features
1. The type TL- PZJ-AT of leading technology specially made for the high efficient and auto-splitting process, by which the wet-forming co-extrudeddouble -piece split tles being split to separated pieces of final split tilesin up to 70 times per minute working frequency and beyond 99.5% qualified rateThis type used in the co-extruded double-piece split tiles production for the high-class external wall decoration.
2. The unique type TL- PZJ-PY & PY-2W of leading technology specially made for the high efficient and auto-splitting process to get special split rock tilesThis machine mainly used and matched with TL-YZJ-260 Press for various features of the splitrock tiles production. by which the dry-formed thick piecegreen tles by the Press can be split to separated pieces in special surfaces like. such as mountains. rocks like etc to achieve personalization. features.natural taste of high-class external wall tiles.
设备描述及机型特点
1.TL-PZJ-AT型机采用领先技术，专为配套高质量湿式挤压成型的双合劈开砖坯的劈开加工生产而特别研制，其劈砖频率及合格率分别高达70次/分钟、及99.5%以上，主要用于各种双合式的高档外墙装。饰劈开砖的优质高效劈开生产。
2.TL-PZJ-PY,PY-2W型机采用国内独创技术，专为配套高质量干法压制成型的砖坯的劈离加工生产而特别研制，实现优质特性化的劈岩砖的生产。与TL-YZJ-260型压机设备配套使用，该机劈离的干法压制成型的砖坯表面可呈现出如山峰、岩石等面状，实现个性化、特性化、自然品味的高档外墙砖的生产。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
