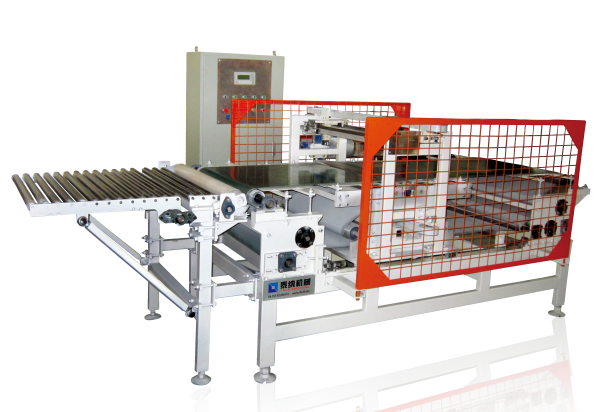

C.23-7 TL-QDJ-WSTB-AE型卧式同步(滚刀)切割机
C.23-7 Horizontal Synchronous(Dise) Cutter Type TL-QDJ-WSTB-AE

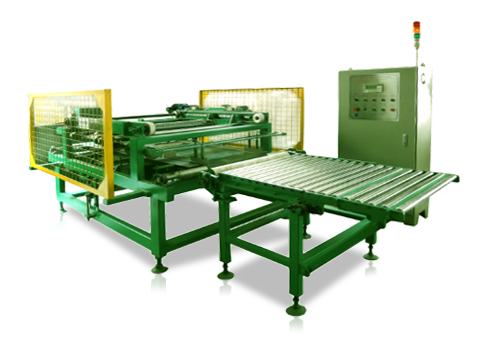

C.23 -8 TL-QDJ-WSTB-GS型卧式同步(钢丝)切割机
C.23 -8 Horizontal Synchronous (Wire) Cutter Type TL-QDJ-WSTB-GS
| 技术参数 / Parameter | WSTB-AE 型号 / Type | WSTB-GS 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 3240×1930×1440 | 3310×1680×1375 |
| 切坯频率 / Cutting Frequency 次 / 分 (1/min) | 1~22 | 1~60 |
| 切坯长度范围 / Cutting Length Range 毫米 (mm) | 150~2000 | 300~2000 |
| 切坯宽度范围 / Cutting Width Range 毫米 (mm) | ≤700 | ≤1000 |
| 切割精度 / Cutting Precision 毫米 (mm) | ±1.5 | ±1.5 |
| 电机功率 / Motor Power 千瓦 (kw) | 3 | 3.4 |
| 重量 / Weight 公斤 (kg) | 1,100 | 1,000 |
Machine Features
1.DLeading technology specially made for the synchro-nously cutting process of horizontal direction matchedwith high-grade extruded wet-forming line for ceramicplate of lying conveyed, especially for the high-classand large-size ceramic plate, terracotta panels etc. TypeWSTB-AE uses steel disc cutter and is suitable forcutting larger size and thinner one. And type WSTB-GSuses steel wire cutter suitable for larger size and thickerplate.
2.Superior features of 6N+2L+3H ensure high quality andefficient production. (6N--No cutting leftovers & itsrecycle process, No man-made errors, No sliding frictionsurface default, No kerosene used & its pollutionproblem. 2L--Low worker's & material's cost. 3H--Highcutting precision, out put and performance-price ratio)
设备描述及机型特点
1.专利技术，专为配套高质量、高产能的湿式成型水平向切断工序而特别研制，采用平铺送坯无尾料同步切割方式，适合生产制造高档陶板、大规格板材等产品。WSTB-AE型为滚刀式切入，适合切割较大平面尺寸及较薄的陶土板材类产品;WSTB-GS型为钢丝式切入，适合切割较大截面尺寸及较厚的陶土板材类产品。
2.优越的6无2低3高性能(6无--无尾料产生及再造工序、无人为误差及砖面滑动摩擦缺陷、无煤油消耗及其挥发造成的污染问题;2低--低的工人数量及物料消耗成本;3高--高切割精度、产量及性价比)，实现优质高效生产。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
