C23-3-4 CUTTER/CUTTING MACHINE SERIES
C23-3-4 CUTTER/CUTTING MACHINE SERIES

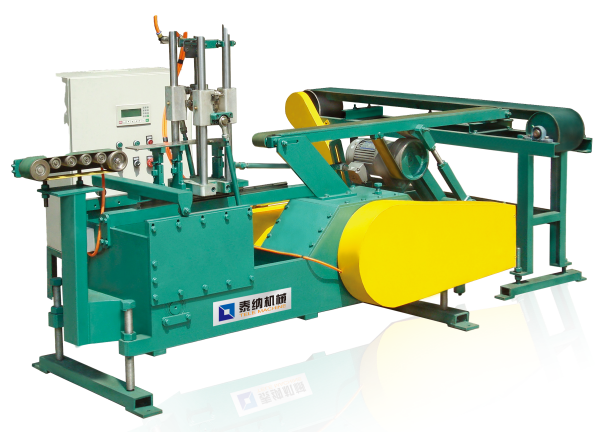

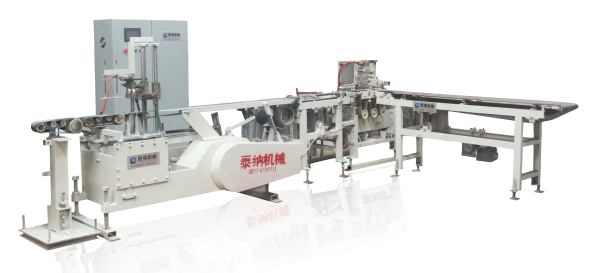

C.23-3-4 TL-QDJ-LSTB-A,ZD型立式同步切砖机
C.23-3-4 Vertical Synchronous Cutter Type TL-QDJ-LSTB-A, ZD
| 技术参数 / Parameter | LSTB-A 型号 / Type | LSTB-ZD 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 2500×800×1400 | 3360×1700×1200 |
| 切坯频率 / Cutting Frequency 次 / 分 (1/min) | 45~60 | 1~20 |
| 切坯长度范围 / Cutting Length Range 毫米 (mm) | 200~350 | ≤600 |
| 切坯宽度范围 / Cutting Width Range 毫米 (mm) | ≤180 | 250~800 |
| 切割精度 / Cutting Precision 毫米 (mm) | ±0.5 | ±0.5 |
| 电机功率 / Motor Power 千瓦 (kw) | 1.9 | 3 |
| 重量 / Weight 公斤 (kg) | 1,000 | 1,100 |
Machine Features
1.Leading technology specially madefor thesynchronously cutting process ofverticaldirection matched with high-grade extrudedwet-forming line for high-grade split brick, woodgrain brick, landscape brick etc. Type LSTB-A usessteel wire cutter is suitable for cutting narrow andlarge cross section brick products And typeLSTB-ZD is a knife cut, suitable for cuttingrelatively wide and thin ceramic tile products.
2. Superior features of 6N+2L+3H ensure high qualityand efficient production. (6N--No cutting leftovers& its recycle process, No man-made errors, Nosliding friction surface default, No kerosene used &its pollution problem. 2L--Low worker's & materi-al's cost. 3H--High cutting precision, out put andperformance-price ratio)
设备描述及机型特点
1.领先技术，专为配套高质量、高产能的湿式成型垂直向切断工序而特别研制，采用立式送坯无尾料同步切割方式，适合生产制造高档劈开砖、木纹砖、景观砖等产品。LSTB-A型为钢丝式切入，适合切割较窄及横截面较大的陶土砖类产品;LSTB-ZD型为闸刀式切入，适合切割相对较宽及较薄的陶土砖类产品。
2.优越的6无2低3高性能(6无--无尾料产生及再造。工序、无人为误差及砖面滑动摩擦缺陷、无煤油消耗及其挥发造成的污染问题; 2低--低的工人数量及物料消耗成本;3高--高切割精度、产量及性价比)，实现优质高效生产。
- Final specifications can be adjusted according to process requirements.

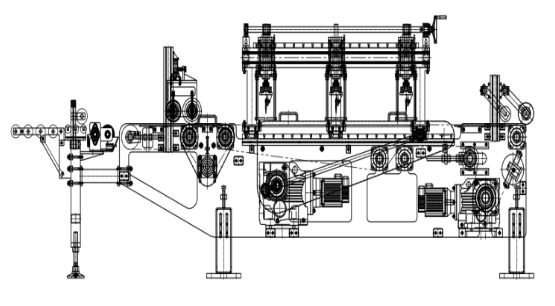

- Complete drawings and technical sheets are available on request.
