C23-14 CUTTER/CUTTING MACHINE SERIES

C.23-14 TL-QDJ-WSTB-DGW型卧式同步多工位切砖机

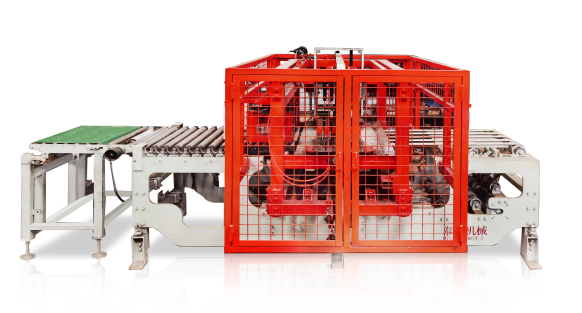

C.23-14 Horizontal Synchronous Multi-Cutting Brick Cutter Type TL-QDJ-WSTB-DGW

Machine Features

1.Advanced technology is adopted to measure, track and feedback the bilet length and sped parameters output by the vacuum extrusion formingmachine through sero motor and PLC encoder,etc. to drive and control the combined cutting device unitto cross-cut synchronously from both sides ofthe motion direction of the brick to cut the continuously input billet into the required brick product size and deliver it to the next level.

2.crosscutting motion mechanitsm absolutey avoid other billet cutting machine up and down longitudinal motion produced by the knife scratches and sizeof the head phenomenon, at the same time wth up and down around the four sides of the chamferng function, to ensure the production of brick beautifulappearance, quality: And generaly cut ffom the short side of the brick, compared with other cutting machine cut from the long side of easy consumablestee wire costis ow, simplemaintenance,shortstand-by time, high production efficency,At the same time, ithas strong adaptablity to the specificationsof the cutting brick and is easy to support the upstream and downstream equipment. It is the best choice of large yield, mixed variety and flexible produc-
With fast cutig sped, high cuting precision, large production capacity. high qualified rate, especialy its signifcant advantages of the left and right
tion of brick.

设备描述及机型特点

1.采用先进技术，通过伺服电机、PLC编码器等测定、跟踪和反馈真空挤压成型机输出的坯料长度及速度参数，驱动和控制组合式切割装置从砖坯运动方向的两侧同步横向切入，将连续输入的坯料切割成所需要的砖品尺寸并输送至下一级。

2.具有切割速度快、切割精度高、产能大、合格率高、特别是其显著优势的左右横切运动机理绝对避免其它切坯机出现的上下纵切运动产生的回刀刮痕及大小头现象，同时带上下左右四面倒角，确保砖品外表美观质量上乘。

• Final specifications can be adjusted according to process requirements.
• Complete drawings and technical sheets are available on request.
