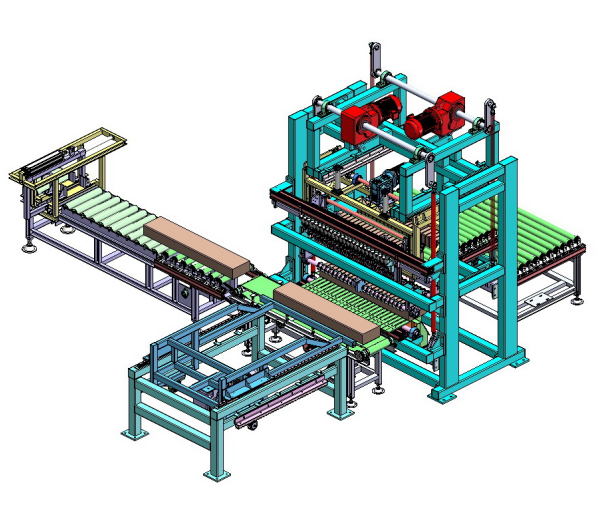

C.23-12 TL-QDJ-DJ4C型大倒角墙地砖切割倒角机
C.23-12 Large Chamfer Bricks Cutting Machine Type TL-QDJ-DJ4C

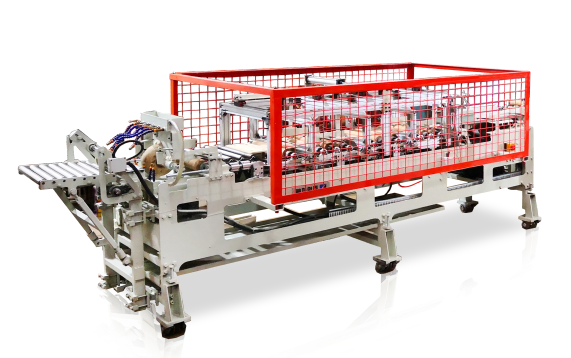

C.23-13 TL-QDJ-WP4C3P型四刀三片瓦坯同步切割机
C.23-13 4 Cut /3Pes Tiles Synchronous Cutting Machine Type TL-QDJ-WP4C3P
| 技术参数 / Parameter | DJ4C 型号 / Type | WP4C3P 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 5950×5400×3000 | 3740×1550×1500 |
| 切坯频率 / Cutting Frequency 次 / 分 (1/min) | 0.5~10 | 20 |
| 切坯长度范围 / Cutting Length Range 毫米 (mm) | 1600 | 380~460 |
| 切坯宽度范围 / Cutting Width Range 毫米 (mm) | 100~120 | ≤400 |
| 切割精度 / Cutting Precision 毫米 (mm) | ±1 | ±1 |
| 电机功率 / Motor Power 千瓦 (kw) | 22.75 | 2.14 |
| 重量 / Weight 公斤 (kg) | 5,000 | 1200 |
Machine Features
1.Type DJ4C adopts leading technology, it can excellently conduct in steps of longstrip cutting of the extruded column, then four edges chamfering and finalpieces cutting functions, by use this machine for floor or wall bricks productionof not only high quality and efficient, but also and the most important is it can getthe bricks four edges big chamfer, and thus to make greatly improved of theproducts both in appearance quality and usages grade which can be comparedwith European similar equipment. It is the best choice for producing high gradepermeable bricks, paving bricks, square bricks, art form wall bricks and the like.
2 Type WP4C3P of unique technology, made for Auto Roofing-Tile Triple-Mold &Exact Twice Positioning Press Line, its servo system drive synchronous cuttingdevice, cutting fast and high precision, each time four cutting 3 tiles, largeoutput, good quality, high production efficiency, can fully meet the subsequentpressing process requirements; Synchronous tracking cutting mode, no tailmaterial is produced after the first cutting of the head material when each timethe machine is started, and the head tail material recovery system is provided,which can save raw materials and protect the production environment.
设备描述及机型特点
1.DJ4C型采用领先技术制造，能出色完成将挤出机挤出的坯料进行切条、四边倒角并切割的三大功能动作，具有实现墙地砖的优质高效化生产、及最关键的是能实现砖坯大倒角生产的特点，使生产出的产品在品质外观及使用档次上均获得大大提升，是生产制造高档透水砖、铺路砖、广场砖、艺术造型墙体砖等的最佳选择，可与欧洲的同类设备媲美。
2.WP4C3P型的独特技术，专为三工位两次定准压制全自动压瓦生产线而配套设计，采用伺服系统驱动同步切割装置，切割快速且精度高，每次四刀切割3片瓦坯，产量大、质量好、生产效率高，能充分满足后续压制工序要求;同步追切方式，在每次开机第一次切割头部料后即无尾料产生，且设有头部尾料回收系统，可节省原材料及保护生产环境。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
