C.23-1-2 TL-QDJ-A，B型全自动翻转切砖机

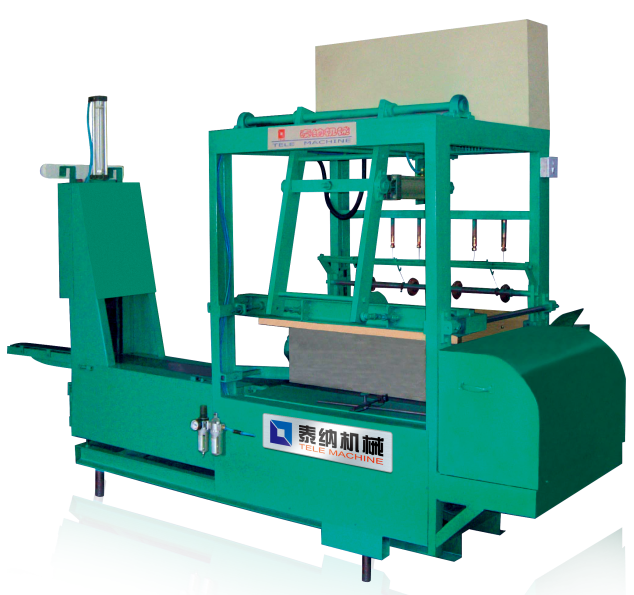

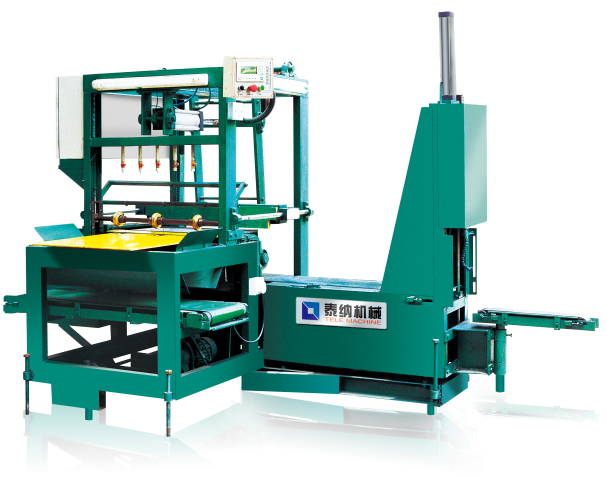

C.23-1-2 Auto Green-Tile Cutter Type TL-QDJ-A, B
| 技术参数 / Parameter | QDJ-A 型号 / Type | QDJ-B 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 3050×1600×2250 | 3280×1600×2250 |
| 切坯频率 / Cutting Frequency 次 / 分 (1/min) | 12~14 | 12~14 |
| 切坯长度范围 / Cutting Length Range 毫米 (mm) | ≤650 | ≤650 |
| 切坯宽度范围 / Cutting Width Range 毫米 (mm) | ≤300 | ≤300 |
| 切割精度 / Cutting Precision 毫米 (mm) | <0.5 | <0.5 |
| 电机功率 / Motor Power 千瓦 (kw) | 1.2 | 1.2 |
| 重量 / Weight 公斤 (kg) | 1,300 | 1,390 |
Machine Features
1.Leading technology specially made for thecutting process of high-grade extrudedwet-forming green clay or ceramic tiles andbricks, especially for cutting the upright convey-ing tiles, like split tiles, clay bricks etc.
2.The overturning & cutting mechanism oftechnique know-how and liquid crystal displaycontrol panel ensure high quality and wholeautomatic working of rough cutting, pushingforward, overturning and traversing, cutting tofixedsizewithchamferededgesorcarved-marks when needed. (Optional for TypeA or B according to the requirement)
设备描述及机型特点
1.领先技术，专为配套高质量湿式成型切断工序而特别研制，采用翻转推进切断方式，尤其适合立式挤出输送的劈开砖、粘土砖等砖坯的切割。(可根据不同产能要求分别选择A型或B型)
2.具有技术诀窍的翻转切断机构及人机界面液晶显示屏操作控制面板，全自动完成粗切、快进、翻转、横推、精切、倒角、印字全过程，实现优质高效生产。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
