C22-4-5-6 VACUUM EXTRUDER/DE-AIRING EXTRUDER SERIES
C22-4-5-6 VACUUM EXTRUDER/DE-AIRING EXTRUDER SERIES
-
C.22-4-5-6 TL-CXJ-FII系列56-56，56-45，56-45T型双级真空挤出机

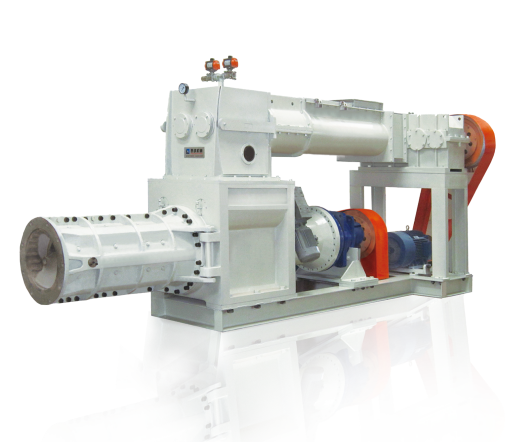

- C.22-4-5-6 FII Series Double-Stage Vacuum Extruder Type TL-CXJ-FII56-56, 56-45, 56-45T
| 技术参数 / Parameter | FII56-56 型号 / Type | FII56-45 型号 / Type | FII56-45T 型号 / Type |
|---|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 5465×2765×2315 | 5465×2765×2315 | 4372×3858×2315 |
| 产能 (可变频调节) / Capacity (VFD Adjustable) 吨 / 小时 (tons/hr) | 10~28 | 10~20 | 10~20 |
| 绞刀公称直径 / Augers Diameter 毫米 (mm) | Φ560 / Φ560 | Φ560 / Φ450 | Φ560 / Φ450 |
| 真空度 / Vacuum Degree 兆帕 (mpa) | ≤-0.095 | ≤-0.095 | ≤-0.095 |
| 挤出压力 / Extruding Pressure 兆帕 (mpa) | 3.5 | 3.5 | 3.5 |
| 电机功率 / Motor Power 千瓦 (kw) | (75~110)/45/4*2 | (75~110)/30/4*2 | (75~110)/30/4*2 |
| 重量 / Weight 公斤 (kg) | 13,200 | 11,000 | 11,000 |
Machine Features
1.Leading technology specially made for high-grade extruded wet-forming
building or industrial materials, especially for making bigger sizes hollow
or solid refractory board, terracotta wall plates or panels, hollow bricks
and paving bricks etc.
building or industrial materials, especially for making bigger sizes hollow
or solid refractory board, terracotta wall plates or panels, hollow bricks
and paving bricks etc.
2.Special designed casting-steel-structured machine body, high strength
and cone-shaped planetary gear-unit, special alloy steel augers, mixing
and extrusion double-stages frequency controlled and coordination
matched in bigger production capacity & output level to ensure high
quality, efficient and reliable production.
设备描述及机型特点
1.领先技术，专为高质量湿式挤出成型陶瓷粘土类、高温耐火材
料类等建材产品而特别研制，尤其适合生产制造各种大规格空
心或实心高温耐火材料板、墙体陶土板、铺路砖及特殊屋顶材
料等。(可根据不同产能要求分别选型) ；
料类等建材产品而特别研制，尤其适合生产制造各种大规格空
心或实心高温耐火材料板、墙体陶土板、铺路砖及特殊屋顶材
料等。(可根据不同产能要求分别选型) ；
2.独特的整体铸钢机体结构、高强厚齿锥形行星减速传动机构及
特制合金钢螺旋叶等配置，搅拌与挤出双级变频调速协调匹
配，大流量、高产量地保证优质高效稳定生产。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
