C22-12-13-14-15 VACUUM EXTRUDER/DE-AIRING EXTRUDER SERIES
C22-12-13-14-15 VACUUM EXTRUDER/DE-AIRING EXTRUDER SERIES
C.22-12-13 TL-CXJ-B系列40-30, 25-25 型真空挤出机

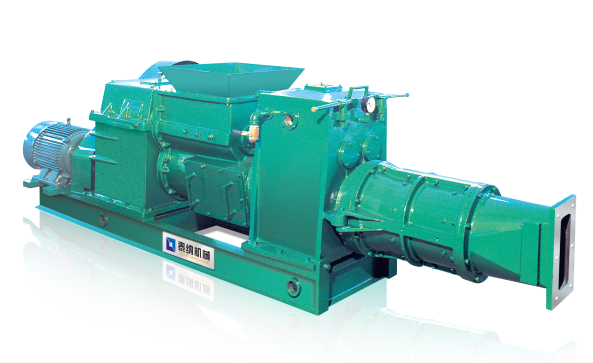

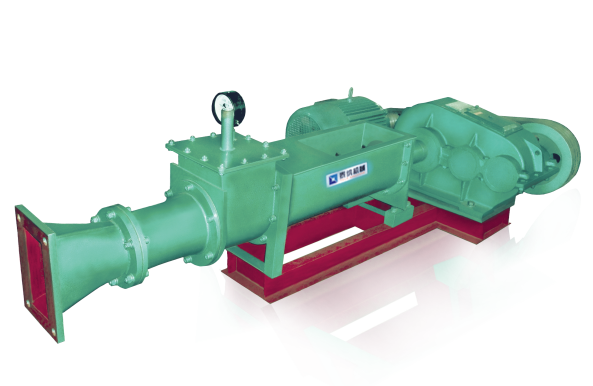

C.22-12-13 B Series Vacuum Extruder Type TL-CXJ-B40-30, B25-25
C.22-14-15 TL-CXJ-SY系列18.5-18.5，12-12 型真空挤出机

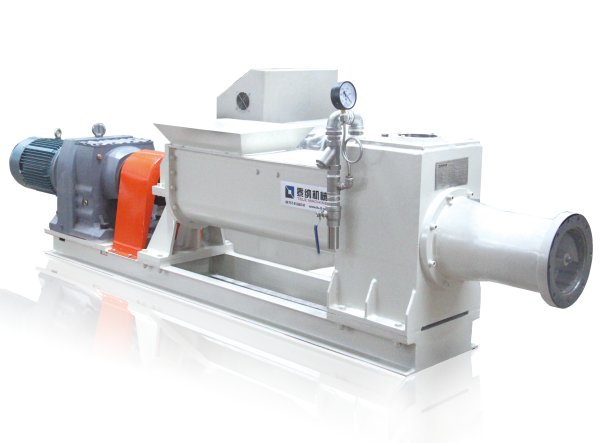

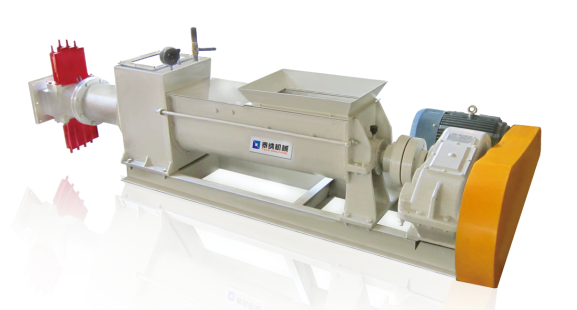

C.22-14-15 SY Series Vacuum Extruder Type TL-CXJ-SY18.5-18.5, 12-12
| 技术参数 / Parameter | B40-30 型号 / Type | B25-25 型号 / Type | SY18.5-18.5 型号 / Type | SY12-12 型号 / Type |
|---|---|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 4600×1800×1300 | 3800×580×1050 | 2700×1130×570 | 2000×1200×650 |
| 产能 (可变频调节) / Capacity (VFD Adjustable) 吨 / 小时 (tons/hr) | 5~8 | 2~6 | 1~3 | 0.25~0.3 |
| 绞刀公称直径 / Augers Diameter 毫米 (mm) | Φ400 / Φ300 | Φ250 / Φ250 | Φ185 / Φ185 | Φ120 / Φ120 |
| 真空度 / Vacuum Degree 兆帕 (mpa) | ≤-0.095 | ≤-0.095 | ≤-0.095 | ≤-0.095 |
| 挤出压力 / Extruding Pressure 兆帕 (mpa) | 2.5 | 2.5 | 2.5 | 2.5 |
| 电机功率 / Motor Power 千瓦 (kw) | 45 | 22 | 11 | 7.5 |
| 重量 / Weight 公斤 (kg) | 6,000 | 1,600 | 850 | 750 |
Machine Features
1.Type B & A specially made for high-grade extruded
wet-forming ceramic tiles and bricks, especially for
making the split tiles, roofing tiles, special shaped tiles
and clay bricks etc. Casting-steel-structured machine
body, high strength gear-box, special alloy steel
augers etc., to ensure high quality and reliable of
production.(The type A25-25 is mainly used for
small-scale output production)
2.Type SY18.5-18.5, SY12-12 specially made for the
trial-production process，or small-scale output
production of extruded wet forming ceramic tiles and
bricks, like split tiles, wall or floor tiles, ceramic plates
etc., to meet all kinds of extrusion trial-process
requirements. (Optional according to the requirement)
设备描述及机型特点
1.CXJ-B, A系列，专为高质量湿式挤压成型陶
瓷砖瓦产品而特别研制，尤其适合生产制
造劈开砖、屋面瓦、异型陶、粘土砖等。
整体铸钢箱体结构、高强厚齿变速传动机
构、特制合金钢螺旋叶等，保证优质、稳
定生产。(其中A25-25型主要用于小规模小
批量生产)
2.SY18.5-18.5, SY12-12型两款机型主要用于
各种湿式成型类陶瓷砖瓦产品批量投产前
的小样试制生产、或小规模小批量生产。
如劈开砖、墙地砖、陶土板等。(可根据不
同产能要求分别选型)
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
