C22-10-11 VACUUM EXTRUDER/DE-AIRING EXTRUDER SERIES
C22-10-11 VACUUM EXTRUDER/DE-AIRING EXTRUDER SERIES
C.22-10-11 TL-CXJ-HIICZ垂直搅拌双螺杆系列40.40x2，40.40x2N型双级真空挤出机

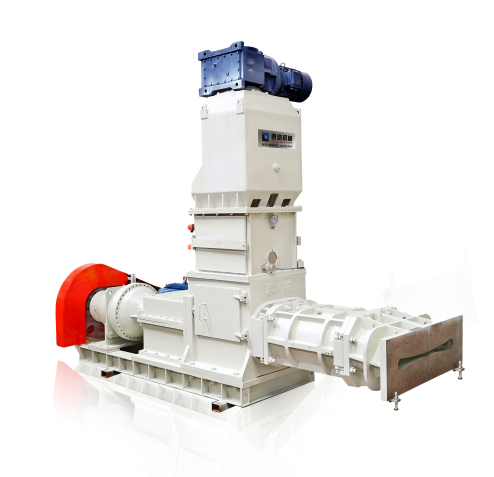

C.22-10-11 HIICZ Series Twin Screw Double-Stage Vertical Mixing Vacuum Extruder Type
TL-CXJ-HIICZ40.40x2，40.40x2N
| 技术参数 / Parameter | HIICZ40/40×2 型号 / Type | HIICZ40/40×2N 型号 / Type |
|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 3370×2530×4200 | 3370×2530×4200 |
| 产能 (可变频调节) / Capacity (VFD Adjustable) 吨 / 小时 (tons/hr) | 6~32 | 6~32 |
| 绞刀公称直径 / Augers Diameter 毫米 (mm) | Φ400 / Φ400 | Φ400 / Φ400 |
| 真空度 / Vacuum Degree 兆帕 (mpa) | ≤-0.095 | ≤-0.095 |
| 挤出压力 / Extruding Pressure 兆帕 (mpa) | 3.5 | 3.5 |
| 电机功率 / Motor Power 千瓦 (kw) | (75~110)/30 | (75~110)/30 |
| 重量 / Weight 公斤 (kg) | 15,000 | 14,500 |
Machine Features
1.Patented technology, specially developed for high-quality extrusion fiber cement ECP products, ceramic & clay building materials, much suitable for
making various specifications of hollow or solid shaped building wall panels, landscape bricks, fiber cement boards, environmental protection sound
barrier boards and special roof materials.
2.Unique vertical mixing integral cast steel body, extrusion barrel and cast steel gear box structure, and high strength thick teeth conical planetary decelera-
tion drive mechanism and special alloy steel augers configuration, as well as mixing and extrusion double frequency conversion speed regulation coordi-
nation match, specially launched the twin screw model on the basis of single screw model, more suitable for large specifications of wide or larger size
building materials production. The extrusion pressure is large, the extrusion speed is uniform and stable, and the extrusion molding effect is good.
3.Extrusion system specially designed rapid disassembly and built-in circulation cooling extruding barrel structure, with easy cleaning after each shift
operation and temperature balance control during the working process, can fully meet some specific requirements (such as cement or similar kind
products) of high quality and efficient production.
设备描述及机型特点
1.专利技术，专为高质量湿式挤出成型纤维水泥制品
类、陶瓷粘土类等建材产品而特别研制，尤其适合
生产制造各种规格的空实心或异形建筑墙板、景观
砖、纤维水泥板、环保声障板及特殊屋顶材料等；
2.独特的立式垂直搅拌整体铸钢机身、挤出机筒和齿
轮箱结构，及高强厚齿锥形行星减速传动机构及特
制合金钢螺旋叶等配置，以及搅拌与挤出双级变频
调速协调匹配，在单螺杆基础上专门推出的双螺杆
机型，更适宜大规格宽体建材的生产。挤出压力
大、挤出速度均匀稳定、挤压成型效果好；
3.挤出系统专门设计的快速拆卸及内置式循环冷却挤
出筒结构，具有每班操作后易于清洗和工作过程中
温度平衡控制等特点，能充分满足某些特定要求 (如
水泥制品或类似产品)的高质量和高效率生产。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
