C22-1-2-3 VACUUM EXTRUDER/DE-AIRING EXTRUDER SERIES
C22-1-2-3 VACUUM EXTRUDER/DE-AIRING EXTRUDER SERIES

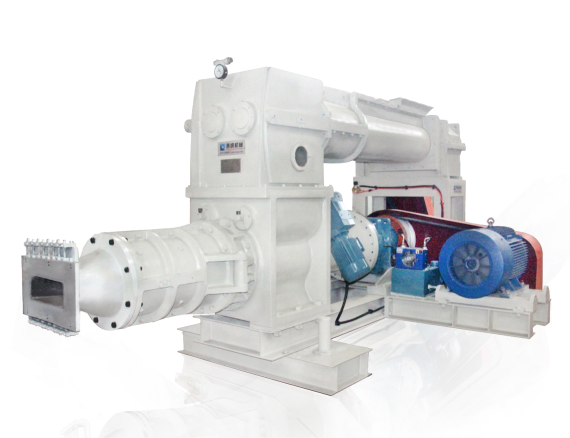

- C.22-1-2-3 TL-CXJ-EII系列45-45，45-40，45-35型双级真空挤出机
- C.22-1-2-3 EII Series Double-Stage Vacuum Extruder Type TL-CXJ- EII45-45, 45-40, 45-35
| 技术参数 / Parameter | EII45-45 型号 / Type | EII45-40 型号 / Type | EII45-35 型号 / Type |
|---|---|---|---|
| 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) | 3870×1820×1850 | 3870×1820×1850 | 3870×1820×1850 |
| 产能 (可变频调节) / Capacity (VFD Adjustable) 吨 / 小时 (tons/hr) | 10~25 | 10~18 | 8~15 |
| 绞刀公称直径 / Augers Diameter 毫米 (mm) | Φ450 / Φ450 | Φ450 / Φ400 | Φ450 / Φ350 |
| 真空度 / Vacuum Degree 兆帕 (mpa) | ≤-0.095 | ≤-0.095 | ≤-0.095 |
| 挤出压力 / Extruding Pressure 兆帕 (mpa) | 3.5 | 3.5 | 3.5 |
| 电机功率 / Motor Power 千瓦 (kw) | 75/45/4*2 | (55~75)/(37~45)/4*2 | 55/(37~45)/4*2 |
| 重量 / Weight 公斤 (kg) | 13,200 | 12,000 | 11,000 |
Machine Features
1.Leading technology specially made for high-grade extruded wet-forming ceramic tiles and bricks, especially for making all kinds of roofng tiles,
ceramic plates, terracotta panels, split tiles, and landscape hollow bricks etc.
2.Casting-steel-structured machine body, high strength gear-box, special alloy steel augers, mixing and extrusion double-stages frequency controlled
and coordination matched to ensure high quality and efcient production. (Optional according to the requirement)
3.The lifting device can also be confgured at the bottom of the machine according to customer needs. Thus, it can quickly and efciently adjust the high
matching between the machine and the production line. (In addition to the E series of relatively light extruders, the F series can also be confgured to
add lifting devices)
设备描述及机型特点
1.领先技术，专为高质量湿式挤压成型陶瓷砖瓦产
品而特别研制，尤其适合生产制造各种规格的屋
面瓦、陶板、劈开转、景观砖、空心砖等。(可
根据不同产能要求分别选型) ；
2.整体铸钢箱体结构、高强厚齿变速传动机构、特
制合金钢螺旋叶、混合搅拌与挤出成型双级变频
调速及协调匹配等，保证优质高效生产。
3.还可根据客户需要在机器底部配置升降装置。从
而可以快速高效的调节本机与生产线的高度匹配
等。(相对较轻的挤出机除E系列外，F系列也可
配置添加升降装置）
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
