C21-7-8 PRESS SERIES FOR TILES & BRICKS
C21-7-8 PRESS SERIES FOR TILES & BRICKS

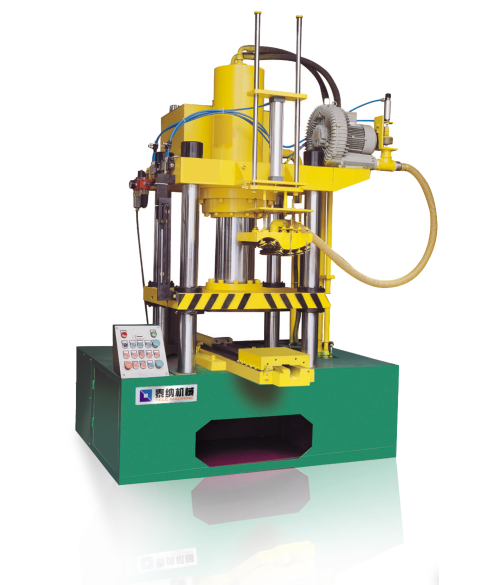

- C.21-7 TL-YWJ-100型液压自动压瓦机
- C.21-7 Auto Hydraulic Roofing Tiles Press Type TL-YWJ-100

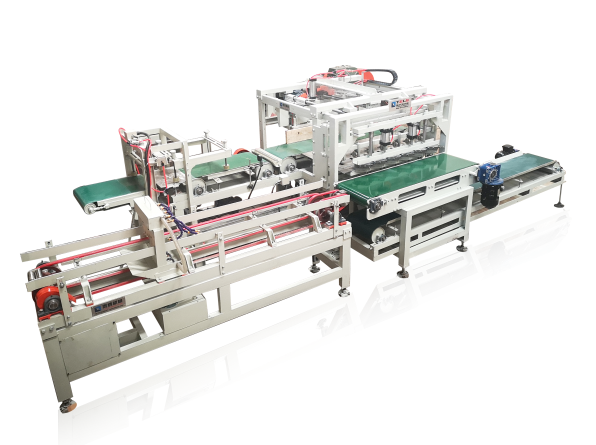

- C21-8. TL-AUTOYWJ-PW-6型全自动鱼鳞瓦/平瓦模压机组
- C.21-8 Auto Fish Scale Tile /Flat Tile Molding Machine Set Type TL-YWJ--PW-6
-
技术参数 / Parameter YWJ-1000 型号 PW-6 型号 外形尺寸 (长 × 宽 × 高) / Dimension L×W×H 毫米 (mm) 1650×1840×2460 52,00 x 2,450 x 1,520 工作台尺寸 (长 × 宽) / Working Table L×W 毫米 (mm) 700×900 1,500 x 1,120 每分钟冲压片数 / Pieces Per Min 片 / 分 (pcs/min) 5~8 14~16 推料缸行程 / Push Cylinder Stroke 毫米 (mm) 5~8 84~96 主缸最大行程 / Main Cylinder Max Stroke 毫米 (mm) 440 50 最大压制力 / Max Press Force 千牛 (kn) 1000 5.6 主电机功率 / Motor Power 千瓦 (kw) 7.5 3.92 重量 / Weight 公斤 (kg) 4,000 2,640
Machine Features
1.1. Type YWJ-100 is mainly used for a variety of roofing accessories of pressing forming production,
including a variety of styles or shapes of tiles. Type PW-6 is mainly used for small size fish scale tile
and other flat tile manufacturing, so that the building roof decoration is more perfect;
2.Adapt to accessories roofing tile, characteristic tile products of multiple
varieties of specifications, small batch supporting production.
设备描述及机型特点
1.1、YWJ-100型主要用于各种屋面瓦类的副瓦、及配件瓦的压制成型制作，
包括各种样式或形状的瓦类建材，PW-6型主要用于小规格鱼鳞瓦等平瓦的制造，
使建筑屋面的装饰更加完美配套；
2.适应配件瓦类、特性化瓦类建材产品的多品种规
格、小批量地配套生产。
- Final specifications can be adjusted according to process requirements.
- Complete drawings and technical sheets are available on request.
