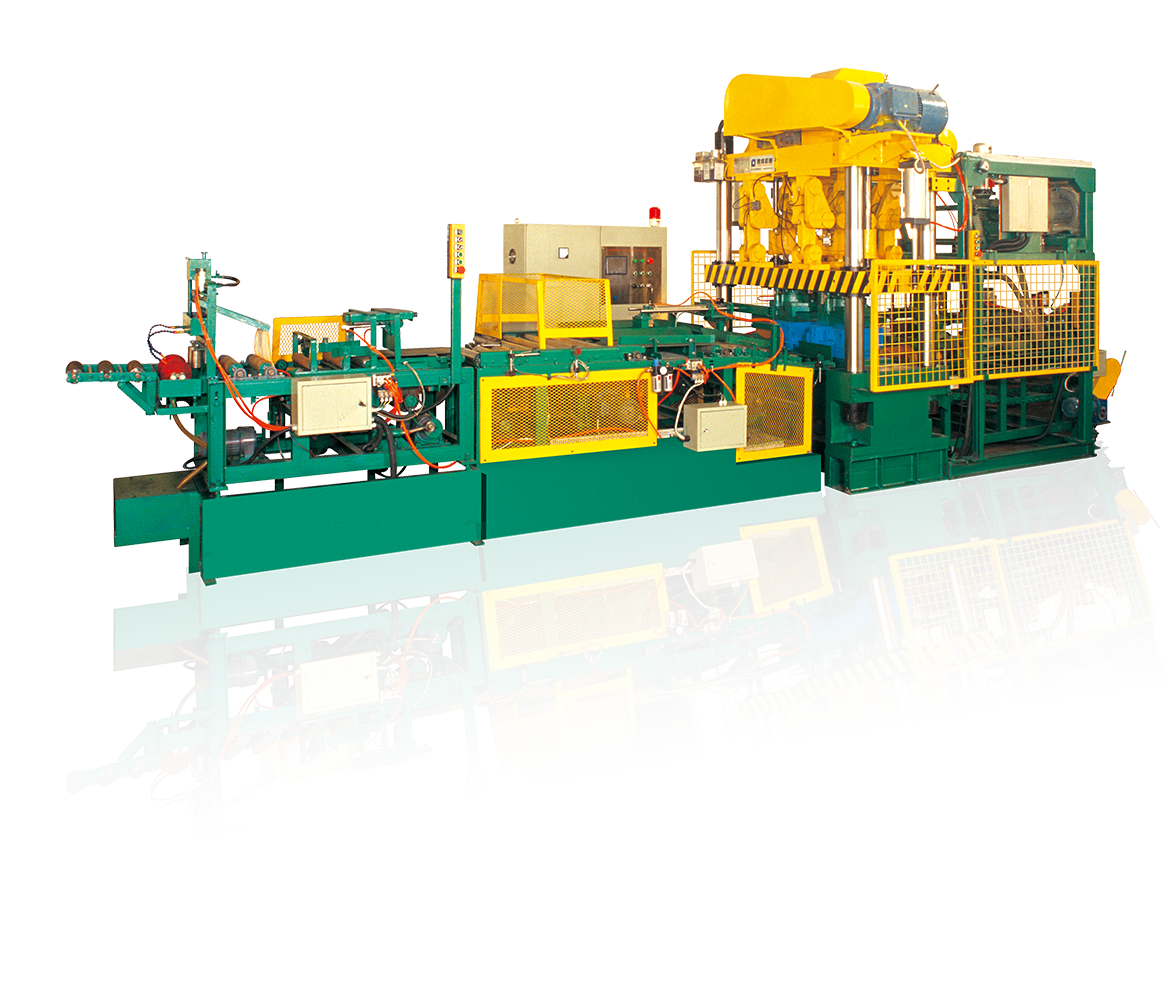

C21-2 ROOFING TILE PRESS & FORMING LINE SERIES
C21-2 ROOFING TILE PRESS & FORMING LINE SERIES
C21-1. Auto Roofing-Tile Single-Mold Press Line Type TL-AUTOYWJ-1W
C21-2. Auto Roofing-Tile Double-Mold Press Line Type TL-AUTOYWJ-2W
Major Technical Parameters
| Parameter | 1W |
2W |
|---|---|---|
| Dimension L×W×H | 7300×1290×2710 mm | 7740×2220×3300 mm |
| Working Table L×W | 550×380 mm | 1640×865 mm |
| Working Frequency | 10~12 (1/min) | 10~12 (1/min) |
| Pieces Per Min | 10~12 (pcs/min) | 20~24 (pcs/min) |
| Pressure Stroke | 250 mm | 250 mm |
| Max Press Force | 1000 kN | 2400 kN |
| Motor Power | 21.75 kW | 31.87 kW |
| Weight | 5000 kg |
11000 kg |
Machine Features
1.Super adapt to a variety of roofing tile products
of multi-shape, multi-volume, flexible, high
quality and efficient production. And type 2W is
double capacity of type 1W.
2.Assembled eight linked-function steps in one, the
line set achieves through the after-extrusion process
to the before-drying process of whole process
automatic production without man-made errors.
3.The unique patented technology of reciprocat-
ing up & down crank arm formation mechanism,
much easy to accurately control the molding
pressure with obvious cost performance advan-
tages in mold use and its maintenance.
